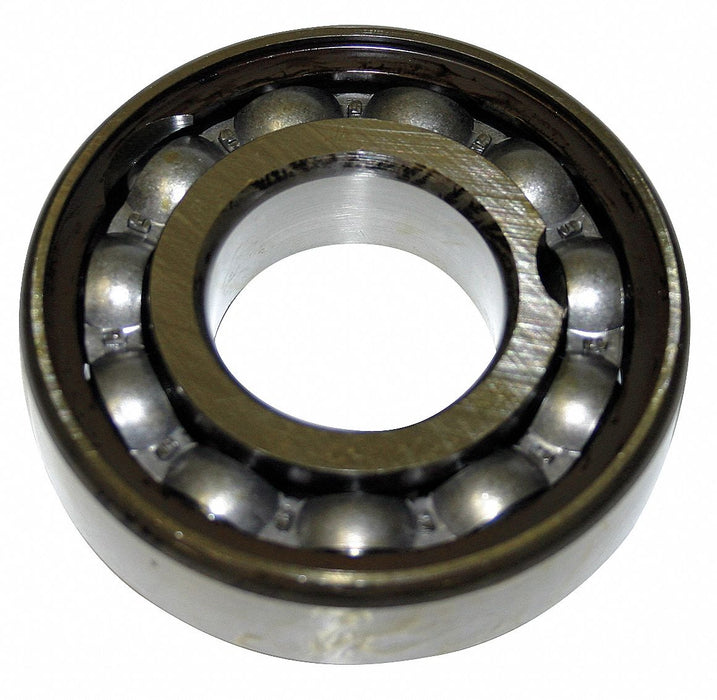

Timken 208W Radial Ball Bearing, 6208, Open, 40 mm Bore, 80 mm OD, 18 mm Wd, Alloy Steel Ring, 1

Timken 208W Radial Ball Bearing, 6208, Open, 40 mm Bore, 80 mm OD, 18 mm Wd, Alloy Steel Ring, 1

UPC: 087796041400 | Harmonization / Schedule B : 8482.10.5044

Country of Origin: | Shipping Weight: 0.85 lbs

$263.56 - $263.56
$263.56
$263.56 - $263.56
$263.56

Radial Ball Bearing, Bearing Industry Number 6208, Bore Diameter 40 mm, Closure Open, Outer Ring Width 18 mm, Outside Diameter 80 mm, Ring Material Alloy Steel, System of Measurement Metric, Cage Material Steel, ABEC Rating 1, Ball Material Alloy Steel, Bore Diameter Tolerance +0/-0.012 mm, Dynamic Radial Load Capacity 46,200 N, Fillet Radius 1.1 mm, Includes Retaining Ring No, Lubricant Material Quaker Ferrocote

Bearing Type Open
Single Row/Double Row Single Row
System of Measurement Metric
Seal/Shield Type Open
Type Open
Bearing Industry Number 6208
ABEC Rating 1
Closure Open
Number of Rows 1
Ring Material Alloy Steel
Ball Material Alloy Steel
Cage Material Steel
Bearing Material Steel
Max. RPM 4,167 RPM
Temp. Range -60 Degrees to 200 Degrees F
Industry Number 208W
Static Load Capacity 6,400 lb
Lubrication Quaker Ferrocote
Dynamic Load Capacity 10,600 lb
ABEC Tolerance 1
Bore Tolerance +0/-.012mm
Includes Retaining Ring No
Minimum Temperature -60 Degrees F
Static Radial Load Capacity 28,700 N
Dynamic Radial Load Capacity 46,200 N
Maximum Speed 5,000 RPM
Lubricant Material Quaker Ferrocote
Maximum Temperature 200 Degrees F
Retaining Ring Groove No
Country of Origin Multiple
