Thomas & Betts 60522 Long - Barrel Splice, Gold Color, 1 AWG Max Wire Size - KVM Tools Inc.KV3LN08

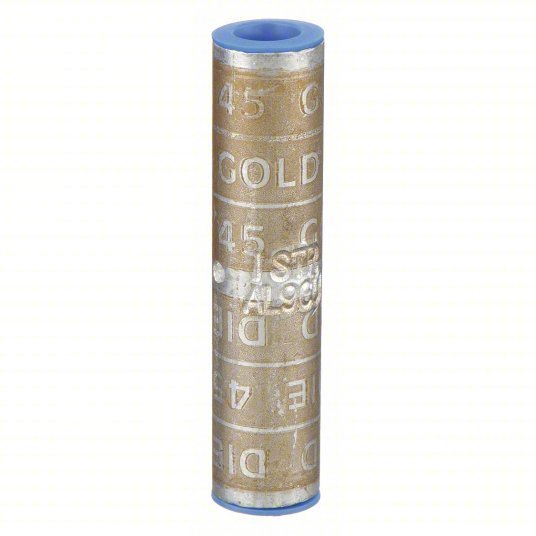

Thomas & Betts 60522 Long-Barrel Splice, Gold Color, 1 AWG Max Wire Size

UPC: 094701217782 | Harmonization / Schedule B : 8536.90.4000

Country of Origin: | Shipping Weight:

$23.07 - $23.07
$23.07
$23.07 - $23.07
$23.07
Long-Barrel Splice, Barrel Finish Tin Plated, Barrel Size Long, Color Code Gold, Die Code 45, For Conductor Material Aluminum, Copper, For Wire Type Stranded, Material Copper, Maximum Voltage 35 kV, Minimum Wire Size 1 AWG, Maximum Wire Size 1 AWG, Number of Crimps 2, Overall Length 2.38 in, Maximum Conductors 1, Maximum Operating Temperature 194 Degrees F, RoHS Compliant Yes, Seam Style Seamless, Standards CSA Certified, UL Listed, Barrel Outside Diameter 0.56 in
Material Copper
Color Code Gold
Wire Gauge 1 AWG
Standards CSA Certified, UL Listed
Die Code 45
RoHS Compliant Yes
For Wire Type Stranded
Maximum Voltage 35 kV
Contact Material Aluminum
Maximum Conductors 1
Termination Style Crimp
Maximum Operating Temperature 194 Degrees F
Seam Style Seamless
Barrel Finish Tin Plated
Contact Finish Tin
For Conductor Material Aluminum, Copper
Compatible with Product Type Copper Conductor
Number of Crimps 2
Special Features For Aluminum and Copper Concentric Conductors and Compact Code Aluminum Strandings
