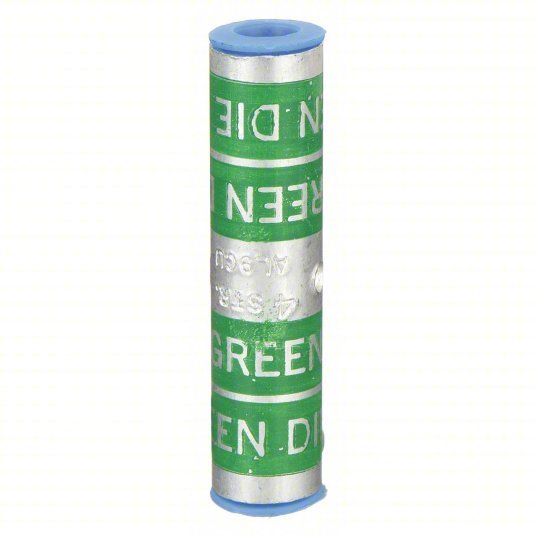

Thomas & Betts 60512 Long-Barrel Splice, Green Color, 4 AWG Max Wire Size

UPC: 786210605128 | Harmonization / Schedule B : 8536.90.4000

Country of Origin: | Shipping Weight:

Original price $14.47 - Original price $14.47
Original price
$14.47
$14.47 - $14.47
Current price $14.47
Long-Barrel Splice, Barrel Finish Tin Plated, Barrel Size Long, Color Code Green, Die Code 37, For Conductor Material Aluminum, For Wire Type Stranded, Material Copper, Maximum Voltage 35 kV, Minimum Wire Size 4 AWG, Maximum Wire Size 4 AWG, Number of Crimps 2, Overall Length 1.81 in, Maximum Conductors 1, Maximum Operating Temperature 194 Degrees F, RoHS Compliant Yes, Seam Style Seamless, Standards CSA Certified, UL Listed, Barrel Outside Diameter 0.46 in
Material Copper
Color Code Green
Color Green
Die Code 37
Standards CSA Certified, UL Listed
Wire Gauge 4 AWG
Voltage Rating 35 kV
RoHS Compliant Yes
Seam Style Seamless
Maximum Operating Temperature 194 Degrees F
Special Features For Aluminum and Copper Concentric Conductors and Compact Code Aluminum Strandings
For Conductor Material Aluminum
Contact Material Aluminum
Compatible with Product Type Copper Conductor
For Wire Type Stranded
Termination Style Crimp
Contact Finish Tin
Barrel Finish Tin Plated
Number of Crimps 2
Maximum Voltage 35 kV
Maximum Conductors 1
Features For aluminum and copper concentric conductors and compact code aluminum strandings.; Connectors supplied with T&B Oxide inhibitor compound in wire bore.; Permits aluminum conductors to be spliced to copper or aluminum conductors.; Application Tools: TBM5, TBM5S, TBM6, TBM6S, TBM8, TBM8S
Surface Finishing Tin-Plated
Temperature Range 90°C
Product Name ELECTRICAL TERMINAL
Number of Batteries 0
Special Functions For aluminum and copper concentric conductors and compact code aluminum strandings.
Product Type Aluminum Splice
Useful for stranded conductors Yes
Insulation None
Temperature Rating 90 C
Standard UL E9809
