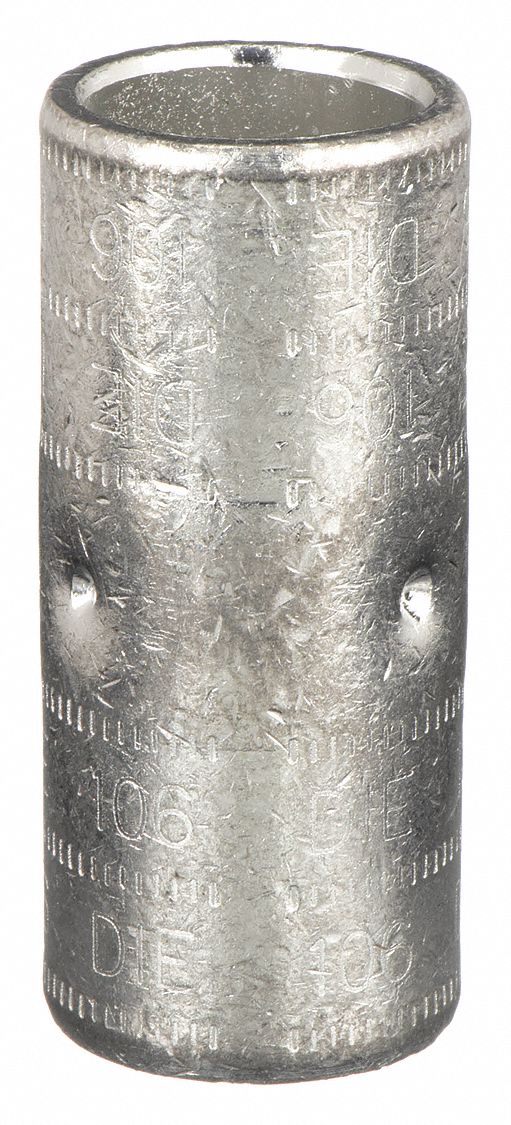

Thomas & Betts 54523-TB Open Barrel Splice, 750 kcmil Wire Size, Black Code, 3 in, Copper Barrel, 106 Die

Thomas & Betts 54523-TB Open Barrel Splice, 750 kcmil Wire Size, Black Code, 3 in, Copper Barrel, 106 Die

UPC: | Harmonization / Schedule B : 8536.90.4000

Country of Origin: Mexico | Shipping Weight: 0.48 lbs

$76.09 - $76.09
$76.09
$76.09 - $76.09
$76.09

Open Barrel Splice, Barrel Finish Tin Plated, Barrel Size Standard, Color Code Black, Die Code 106, For Conductor Material Copper, For Wire Type Class G, H, I, K, M, Material Copper, Maximum Voltage 35 kV, Maximum Wire Size 750 kcmil, Number of Crimps 2, Overall Length 3 in, Maximum Conductors 1, Maximum Operating Temperature 194 Degrees F, RoHS Compliant Yes, Seam Style Seamless, Standards CSA Certified, UL Listed, Barrel Outside Diameter 1.3 in

Maximum Wire Size 750 kcmil
Minimum Wire Size 750 kcmil
Length 3 in
Outside Dia. 1.3 in
Overall Length 3 in
Maximum Wire Insulation Diameter 1.3 in
Barrel Outside Diameter 1.3 in
Barrel Size Standard
For Minimum Wire Size - Solid 750 kcmil
For Maximum Wire Size - Solid 750 kcmil
For Minimum Wire Size - Stranded 750 kcmil
For Maximum Wire Size - Stranded 750 kcmil
Wire Rope Length 3 in
Type Splice
Color Black
Insulation Material None
Maximum Voltage 35 kV
Current 750 A
Maximum Operating Temperature 194 Degrees F
RoHS Compliant Yes
Standards CSA Certified, UL Listed
Die Code 106
Material Copper
Seam Style Seamless
For Wire Type Class G, H, I, K, M
For Conductor Material Copper
Number of Crimps 2
Special Features Easy To Insulate and Provide a Low-Resistance Connection of High Quality and Low Installed Cost, Two-Way Connectors Provide High Pullout Values
Maximum Conductors 1
Compatible with Product Type Copper Conductor
Features Two-way connectors provide high pullout values, are easy to insulate and provide a low-resistance connection of high quality and low installed cost.
Finish Tin Plated
Sleeve form Short
Application Applications certified to 600 V and recommended up to 35 kV¥
Maximum Tap Conductors 1
Maximum Run Conductors 1
Contact Finish Tin
Color Code Black
Contact Material Copper
Termination Style Crimp
Barrel Finish Tin Plated
Country of Origin Mexico
