Thomas & Betts 54512 Short-Barrel Splice Std Barrel Size, Purple Color, 4/0 AWG Max Wire Size - KVM Tools Inc.KV3LM21

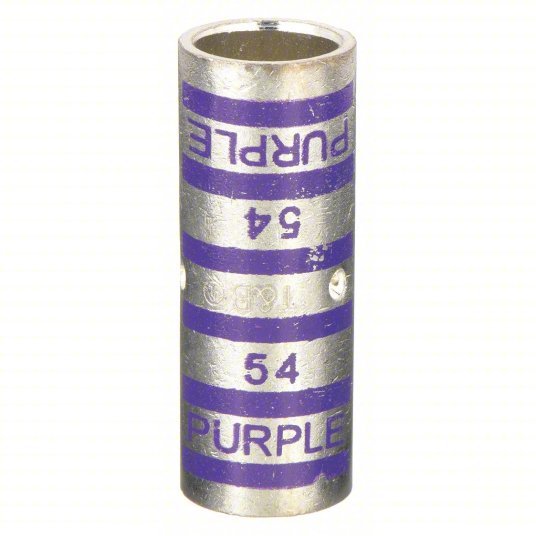

Thomas & Betts 54512 Short-Barrel Splice Std Barrel Size, Purple Color, 4/0 AWG Max Wire Size

UPC: 786210545127 | Harmonization / Schedule B : 8536.90.4000

Country of Origin: Mexico | Shipping Weight: 0.06 lbs

$25.95 - $25.95
$25.95
$25.95 - $25.95
$25.95
Short-Barrel Splice, Barrel Finish Tin Plated, Barrel Size Standard, Color Code Purple, Die Code 54, For Conductor Material Copper, For Wire Type Class G, H, I, K, M, Material Copper, Maximum Voltage 35 kV, Minimum Wire Size 4/0 AWG, Maximum Wire Size 4/0 AWG, Number of Crimps 2, Overall Length 1.88 in, Maximum Conductors 1, Maximum Operating Temperature 194 Degrees F, RoHS Compliant Yes, Seam Style Seamless, Standards CSA Certified, UL Listed, Barrel Outside Diameter 0.7 in
Material Copper
Color Code Purple
Color Purple
Die Code 54
Wire Gauge 4/0 AWG
Standards CSA Certified, UL Listed
Voltage Rating 600 V
Maximum Voltage 35 kV
Special Features Easy To Insulate and Provide a Low-Resistance Connection of High Quality and Low Installed Cost, Two-Way Connectors Provide High Pullout Values
Contact Finish Tin
For Wire Type Class G, H, I, K, M
Seam Style Seamless
Barrel Finish Tin Plated
Maximum Operating Temperature 194 Degrees F
Number of Crimps 2
Compatible with Product Type Copper Conductor
Contact Material Copper
Termination Style Crimp
For Conductor Material Copper
RoHS Compliant Yes
Maximum Conductors 1
Insulation Material None
Surface Finishing Tin Plated
Product Name ELECTRICAL TERMINAL
Number of Batteries 0
Product Type Splice
Special Functions Two-way connectors provide high pullout values, are easy to insulate and provide a low-resistance connection of high quality and low installed cost.
Type of connection End connector
Standard UL E9809
Application Applications certified to 600 V and recommended up to 35 kV¥
Sleeve form Short
AWG-range 4/0-4/0
Surface protection Tinned
Voltage level Up to 35 kV
Conductor Range 4/0-4/0 AWG
