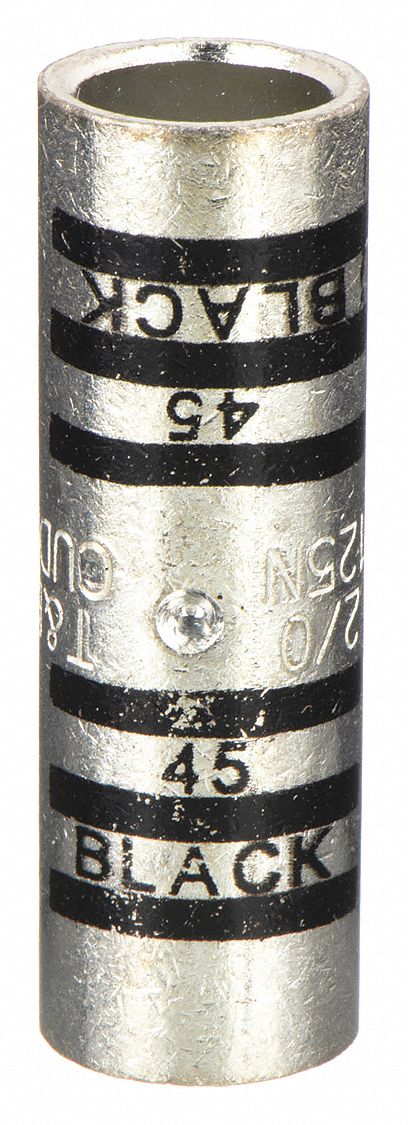

Thomas & Betts 54510 Open Barrel Splice, 2/0 AWG Wire Size, Black Code, 1.75 in, Copper Barrel, 45 Die

Thomas & Betts 54510 Open Barrel Splice, 2/0 AWG Wire Size, Black Code, 1.75 in, Copper Barrel, 45 Die

UPC: | Harmonization / Schedule B : 8536.90.4000

Country of Origin: Mexico | Shipping Weight: 0.04 lbs

$22.44 - $22.44
$22.44
$22.44 - $22.44
$22.44

Open Barrel Splice, Barrel Finish Tin Plated, Barrel Size Standard, Color Code Black, Die Code 45, For Conductor Material Copper, For Wire Type Class G, H, I, K, M, Material Copper, Maximum Voltage 35 kV, Maximum Wire Size 2/0 AWG, Number of Crimps 1, Overall Length 1.75 in, Maximum Conductors 1, Maximum Operating Temperature 194 Degrees F, RoHS Compliant Yes, Seam Style Seamless, Standards CSA Certified, UL Listed, Barrel Outside Diameter 0.57 in

Maximum Wire Size 2/0 AWG
Minimum Wire Size 2/0 AWG
Outside Dia. 0.57 in
Length 1.75 in
Overall Length 1.75 in
Maximum Wire Insulation Diameter 0.57 in
Barrel Outside Diameter 0.57 in
Barrel Size Standard
For Maximum Wire Size - Solid 2/0 AWG
For Minimum Wire Size - Solid 2/0 AWG
Wire Rope Length 1.75 in
Type Splice
Color Black
Insulation Material None
Maximum Voltage 35 kV
Maximum Operating Temperature 194 Degrees F
RoHS Compliant Yes
Material Copper
Die Code 45
Standards CSA Certified, UL Listed
Number of Crimps 1
Compatible with Product Type Copper Conductor
Maximum Conductors 1
For Wire Type Class G, H, I, K, M
For Conductor Material Copper
Seam Style Seamless
Special Features Easy To Insulate and Provide a Low-Resistance Connection of High Quality and Low Installed Cost, Two-Way Connectors Provide High Pullout Values
Features Two-way connectors provide high pullout values, are easy to insulate and provide a low-resistance connection of high quality and low installed cost.
Finish Tin Plated
Application Applications certified to 600 V and recommended up to 35 kV¥
Barrel Finish Tin Plated
Contact Finish Tin
Contact Material Copper
Termination Style Crimp
Color Code Black
Country of Origin Mexico
