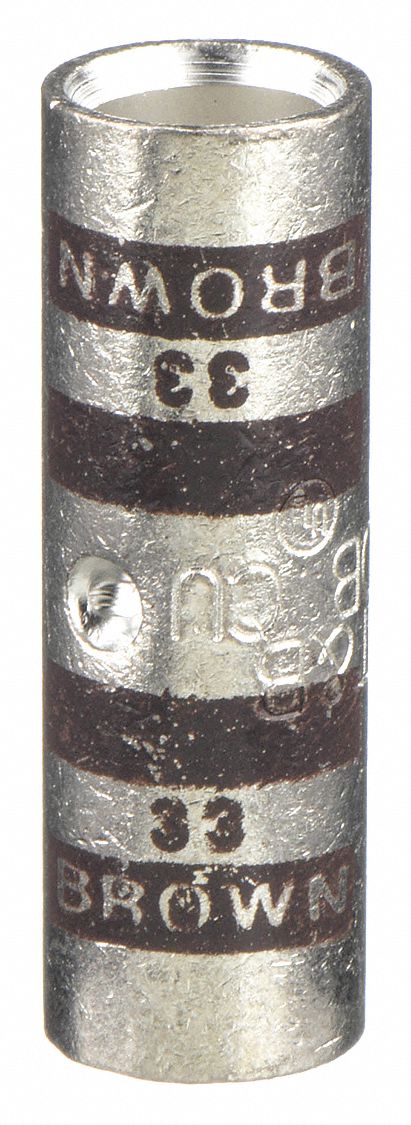

Thomas & Betts 54507 Open Barrel Splice, 2 AWG Wire Size, Brown Code, 1.25 in, Copper Barrel, 33 Die

Thomas & Betts 54507 Open Barrel Splice, 2 AWG Wire Size, Brown Code, 1.25 in, Copper Barrel, 33 Die

UPC: | Harmonization / Schedule B : 8536.90.4000

Country of Origin: Mexico | Shipping Weight: 0.1 lbs

$19.02 - $19.02
$19.02
$19.02 - $19.02
$19.02

Open Barrel Splice, Barrel Finish Tin Plated, Barrel Size Standard, Color Code Brown, Die Code 33, For Conductor Material Copper, For Wire Type Class G, H, I, K, M, Material Copper, Maximum Voltage 35 kV, Maximum Wire Size 2 AWG, Number of Crimps 1, Overall Length 1.25 in, Maximum Conductors 1, Maximum Operating Temperature 194 Degrees F, RoHS Compliant Yes, Seam Style Seamless, Standards CSA Certified, UL Listed, Barrel Outside Diameter 0.41 in

Maximum Wire Size 2 AWG
Minimum Wire Size 2 AWG
Length 1.25 in
Outside Dia. 0.41 in
Overall Length 1.25 in
Barrel Outside Diameter 0.41 in
Barrel Size Standard
Maximum Wire Insulation Diameter 0.41 in
For Maximum Wire Size - Solid 2 AWG
For Minimum Wire Size - Solid 2 AWG
Wire Rope Length 1.25 in
MFR # 54507
Zoro # G1689441
UPC # -
Country of Origin Mexico
Type Splice
Color Brown
Insulation Material None
Maximum Voltage 35 kV
Maximum Operating Temperature 194 Degrees F
RoHS Compliant Yes
Material Copper
Standards CSA Certified, UL Listed
Die Code 33
For Wire Type Class G, H, I, K, M
Seam Style Seamless
Compatible with Product Type Copper Conductor
Maximum Conductors 1
For Conductor Material Copper
Number of Crimps 1
Special Features Easy To Insulate and Provide a Low-Resistance Connection of High Quality and Low Installed Cost, Two-Way Connectors Provide High Pullout Values
Features Two-way connectors provide high pullout values, are easy to insulate and provide a low-resistance connection of high quality and low installed cost.
Application Applications certified to 600 V and recommended up to 35 kV¥
Finish Tin Plated
Contact Material Copper
Contact Finish Tin
Termination Style Crimp
Color Code Brown
Barrel Finish Tin Plated
Country of Origin Mexico (subject to change)
