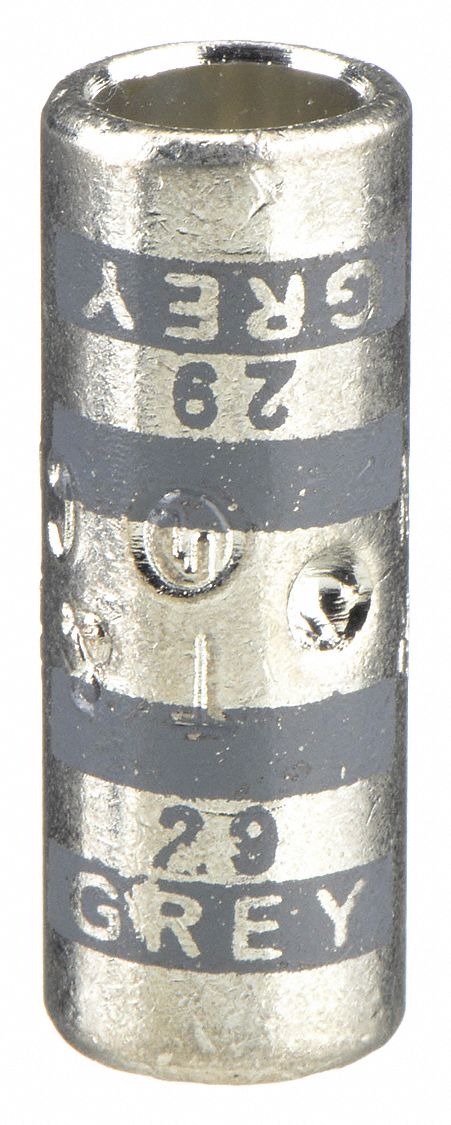

Thomas & Betts 54506 Open Barrel Splice, 4 AWG Wire Size, Gray Code, 1 in, Copper Barrel, 29 Die

Thomas & Betts 54506 Open Barrel Splice, 4 AWG Wire Size, Gray Code, 1 in, Copper Barrel, 29 Die

UPC: | Harmonization / Schedule B : 8536.90.4000

Country of Origin: Mexico | Shipping Weight: 0.1 lbs

$14.03 - $14.03
$14.03
$14.03 - $14.03
$14.03

Open Barrel Splice, Barrel Finish Tin Plated, Barrel Size Standard, Color Code Gray, Die Code 29, For Conductor Material Copper, For Wire Type Class G, H, I, K, M, Material Copper, Maximum Voltage 35 kV, Maximum Wire Size 4 AWG, Number of Crimps 1, Overall Length 1 in, Maximum Conductors 1, Maximum Operating Temperature 194 Degrees F, RoHS Compliant Yes, Seam Style Seamless, Standards CSA Certified, UL Listed, Barrel Outside Diameter 0.37 in

Maximum Wire Size 4 AWG
Minimum Wire Size 4 AWG
Length 1 in
Outside Dia. 0.37 in
Overall Length 1 in
Maximum Wire Insulation Diameter 0.37 in
Barrel Outside Diameter 0.37 in
Barrel Size Standard
For Minimum Wire Size - Solid 4 AWG
For Maximum Wire Size - Solid 4 AWG
Wire Rope Length 1 in
Type Splice
Color Gray
Insulation Material None
Maximum Voltage 35 kV
Maximum Operating Temperature 194 Degrees F
RoHS Compliant Yes
Material Copper
Die Code 29
Standards CSA Certified, UL Listed
Maximum Conductors 1
Special Features Easy To Insulate and Provide a Low-Resistance Connection of High Quality and Low Installed Cost, Two-Way Connectors Provide High Pullout Values
For Conductor Material Copper
Compatible with Product Type Copper Conductor
Number of Crimps 1
Seam Style Seamless
For Wire Type Class G, H, I, K, M
Features Two-way connectors provide high pullout values, are easy to insulate and provide a low-resistance connection of high quality and low installed cost.
Finish Tin Plated
Application Applications certified to 600 V and recommended up to 35 kV¥
Contact Finish Tin
Color Code Gray
Barrel Finish Tin Plated
Termination Style Crimp
Contact Material Copper
Country of Origin Mexico
