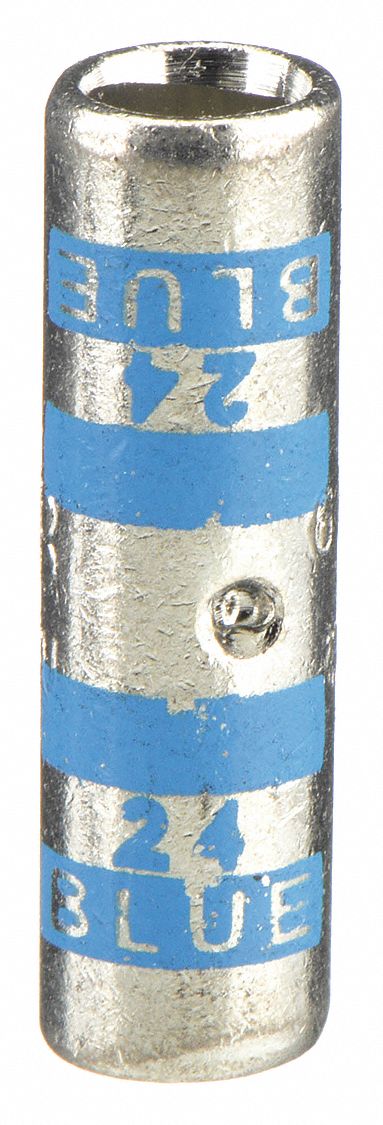

Thomas & Betts 54505 Open Barrel Splice, 6 AWG Wire Size, Blue Code, 1 in, Copper Barrel, 24 Die

Thomas & Betts 54505 Open Barrel Splice, 6 AWG Wire Size, Blue Code, 1 in, Copper Barrel, 24 Die

UPC: | Harmonization / Schedule B : 8536.90.4000

Country of Origin: Mexico | Shipping Weight: 0.1 lbs

$11.73 - $11.73
$11.73
$11.73 - $11.73
$11.73

Open Barrel Splice, Barrel Finish Tin Plated, Barrel Size Standard, Color Code Blue, Die Code 24, For Conductor Material Copper, For Wire Type Class G, H, I, K, M, Material Copper, Maximum Voltage 35 kV, Maximum Wire Size 6 AWG, Number of Crimps 1, Overall Length 1 in, Maximum Conductors 1, Maximum Operating Temperature 194 Degrees F, RoHS Compliant Yes, Seam Style Seamless, Standards CSA Certified, UL Listed, Barrel Outside Diameter 0.3 in

Maximum Wire Size 6 AWG
Minimum Wire Size 6 AWG
Outside Dia. 0.3 in
Length 1 in
Overall Length 1 in
Barrel Size Standard
Maximum Wire Insulation Diameter 0.3 in
Barrel Outside Diameter 0.3 in
For Maximum Wire Size - Solid 6 AWG
For Minimum Wire Size - Solid 6 AWG
Wire Rope Length 1 in
MFR # 54505
Zoro # G3108253
UPC # -
Country of Origin Mexico
Type Splice
Color Blue
Insulation Material None
Maximum Voltage 35 kV
Maximum Operating Temperature 194 Degrees F
RoHS Compliant Yes
Material Copper
Standards CSA Certified, UL Listed
Die Code 24
Maximum Conductors 1
Special Features Easy To Insulate and Provide a Low-Resistance Connection of High Quality and Low Installed Cost, Two-Way Connectors Provide High Pullout Values
Compatible with Product Type Copper Conductor
Number of Crimps 1
For Conductor Material Copper
For Wire Type Class G, H, I, K, M
Seam Style Seamless
Features Two-way connectors provide high pullout values, are easy to insulate and provide a low-resistance connection of high quality and low installed cost.
Finish Tin Plated
Application Applications certified to 600 V and recommended up to 35 kV¥
Contact Finish Tin
Termination Style Crimp
Contact Material Copper
Barrel Finish Tin Plated
Color Code Blue
Country of Origin Mexico (subject to change)
