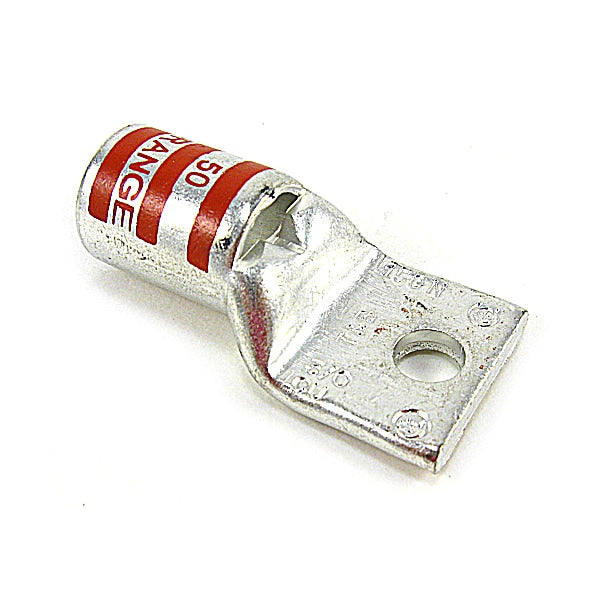

Thomas & Betts 54165-TB Compression Lug, Stranded Wire Type, 1/2 in Stud Size, Std, Copper

Thomas & Betts 54165-TB Compression Lug, Stranded Wire Type, 1/2 in Stud Size, Std, Copper

UPC: | Harmonization / Schedule B : 8535.90.8020

Country of Origin: Mexico | Shipping Weight: 0.09 lbs

$33.66 - $33.66
$33.66
$33.66 - $33.66
$33.66

Compression Lug, Barrel Size Standard, Color Code Orange, Die Code 50, For Conductor Material Copper, For Stud Size 1/2 in, For Stranded Copper Wire Size - Maximum 3/0 AWG, Inspection Hole Yes, Material Copper, Maximum Voltage 35 kV, Standards CSA Certified, UL Listed, Number of Holes 1, For Wire Type Stranded

For Conductor Material Copper
Material Copper
Tongue Angle Straight
Inspection Hole Yes
Die Code 50
Color Code Orange
Standards CSA Certified, UL Listed
Peep Hole Yes
Connector Type Standard Barrel
Finish Tin-Plated
For Wire Type Stranded
Maximum Voltage 35 kV
Die Color Orange
B (inches) 1.25
Number of Studs 1
Barrel Shape Standard
C (inches) 0.92
F (inches) 0.5
A (inches) 2.35
E (inches) 0.63
Marking Standard
D (inches) 0.13
Hole Shape Round
Connecting angle 180° (horizontal)
Insulation None
Insulated No
Number of mounting holes 1
Voltage Rating 35 kV
Surface protection Tinned
Number of Holes 1
Country of Origin Mexico
