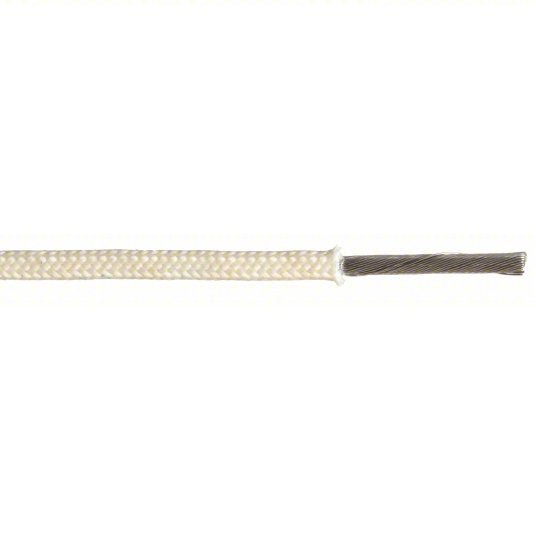

Tempco LDWR-1023 High Temp Lead Wire 12 AWG Wire Size, Natural, 100 ft Lg

High Temp Lead Wire, Wire Size 12 AWG, Trade Designation TGGT, Insulation Material Fiberglass, PTFE, Wire Color Natural, Length 100 ft, Voltage 600V AC, Jacket Color Natural, Conductor Material Nickel Plated Copper, Temp. Rating 482 Degrees F

Jacket Color	Natural
Max. Temp. (C)	250 Degrees
Stranding	65 x 30
Insulation	PTFE Tape Insulation with (2) Layers of Fiberglass Insulation Covered By PTFE Treated Fiberglass Over-Braid
Conductor Material	Nickel Plated Copper
Cable Type	TGGT
Wire Gauge	12 AWG
Standards	CSA AWM Class 1 Group A/B, UL 5256
Max. Amps	54 At Ambient Temp of 104 Degrees F/40 Degrees C
Item	High Temperature Lead Wire
Voltage	600V AC
Max. Temp. (F)	482 Degrees
Wire Color	Natural
Trade Designation	TGGT
Temp. Rating	482 Degrees F
Insulation Material - Wire and Cable	Fiberglass, PTFE
Cable Type - Wire and Cable	TGGT
Insulation Material	Fiberglass, PTFE
Wire and Cable Item	High Temperature Lead Wire
