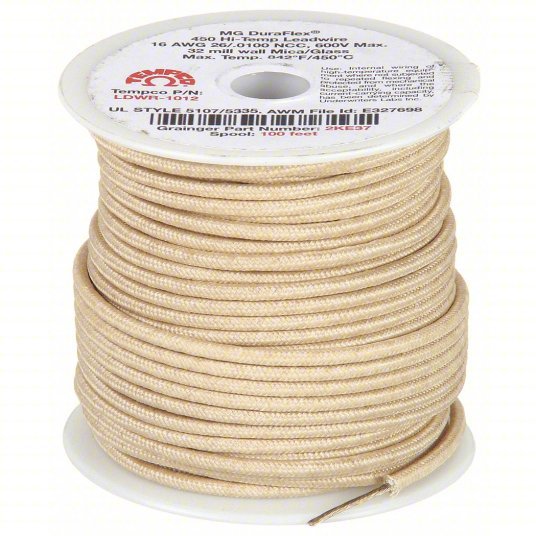

Tempco LDWR-1012 High Temp Lead Wire 16 AWG Wire Size, Natural, 100 ft Lg, MG

UPC: 094700439796 | Harmonization (Schedule B): 8544.49.3080

Original price $212.12 - Original price $212.12
Original price
$212.12 - $212.12
Current price $212.12
High Temp Lead Wire, Wire Size 16 AWG, Trade Designation MG, Insulation Material Fiberglass, Mica, Wire Color Natural, Length 100 ft, Voltage 600V AC, Jacket Color Natural, Conductor Material Nickel Clad Copper, Temp. Rating 842 Degrees F
Insulation Mica Insulation with Fiberglass Over-Braid
Cable Type MG
Max. Amps 30 At Ambient Temp of 104 Degrees F/40 Degrees C
Conductor Material Nickel Clad Copper
Stranding 26 x 30
Max. Temp. (C) 450 Degrees
Item High Temperature Lead Wire
Max. Temp. (F) 842 Degrees
Jacket Color Natural
Wire Gauge 16 AWG
Voltage 600V AC
Standards CSA AWM Class 1 Group A/B FT-1, UL 5335/5107
Trade Designation MG
Temp. Rating 842 Degrees F
Wire Color Natural
Product Type High Temp Lead Wire
Wire and Cable Item High Temperature Lead Wire
Cable Type - Wire and Cable MG
