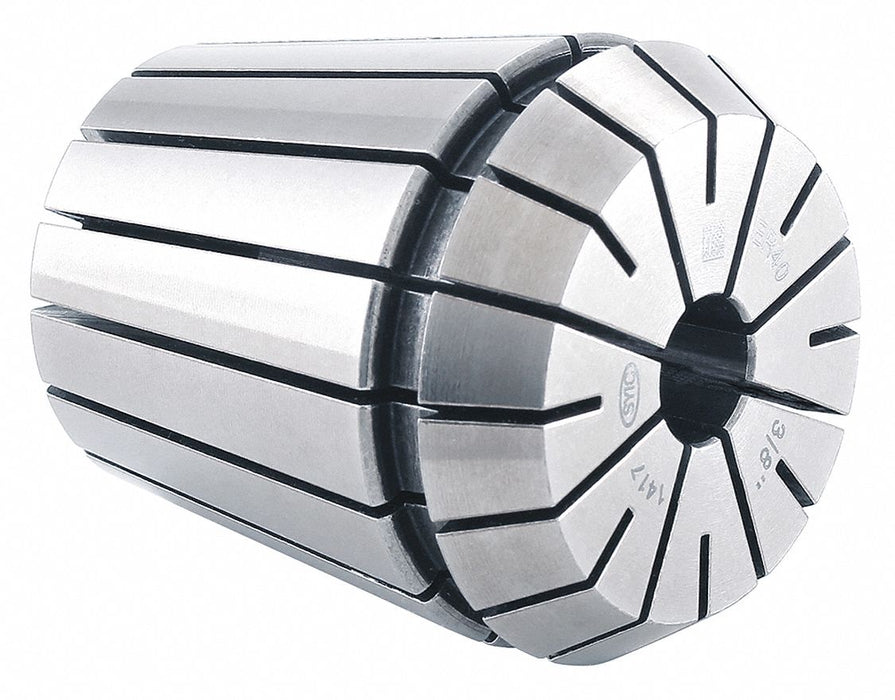

Techniks 04240-7/32 Collet, ER40, 7/32 in

Techniks 04240-7/32 Collet, ER40, 7/32 in

UPC: | Harmonization / Schedule B : 8466.20.8035

Country of Origin: Taiwan, Province of China | Shipping Weight: 0.55 lbs

$43.56 - $43.56
$43.56
$43.56 - $43.56
$43.56

Collet, ER40, Round, Overall Length 1 13/16 in

Collet Series ER40
Range 0.219" to 0.203"
Coolant Through Yes
For Use With BR Collet Chuck Series, DR Collet Chuck Series, ER Collet Chuck Series, ESX Collet Chuck Series, RD Collet Chuck Series
Coolant Fed Coolant Through
Face Shape Round
Measurement System Inch
TIR Max. 0.0002 in
Collet Type Standard
Compatible with Product Type AR, BR Series, DR, ESX, RD
Number of Slots 8
Material High-Carbon Steel
Operating Pressure - Maximum 2,000 psi
T.I.R. Tolerance 0.0002 in
Collapse Range - Minimum 0.179 in
Compatible Collet Chuck AR, BR, DR, ESX, RD
Bore Shape Round
Torque - Maximum 130 ft-lb
Finish Precision Ground
Taper Angle 8 Degrees
Collapse Range - Maximum 0.218 in
Country of Origin Taiwan, Province of China
