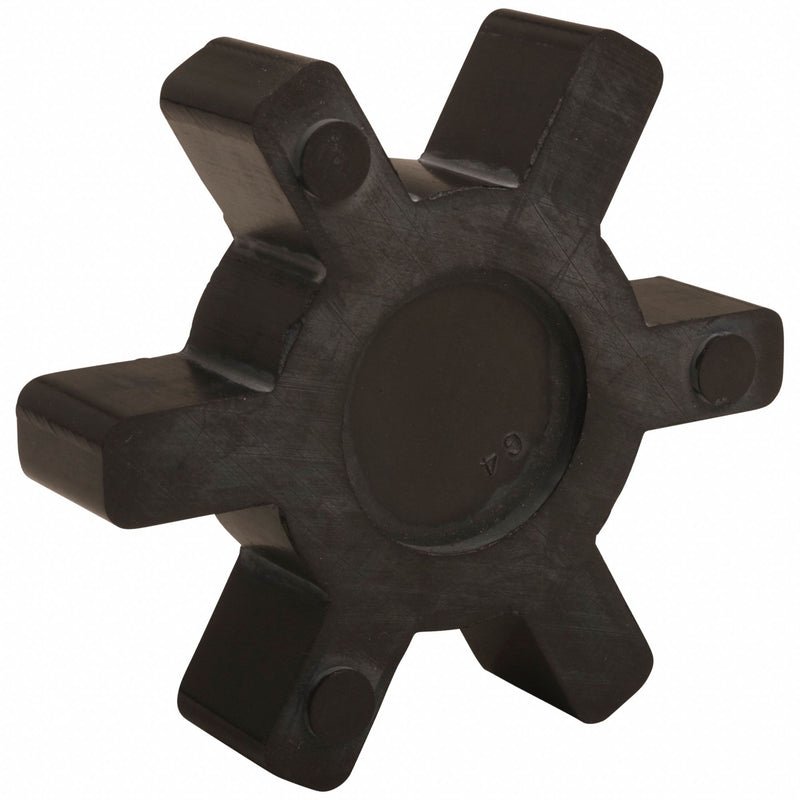

TB Wood's L190N Buna-N Spider Insert, L190 Jaw Coupling, 4-15/32 in OD, Solid Center

TB Wood's L190N Buna-N Spider Insert, L190 Jaw Coupling, 4-15/32 in OD, Solid Center

UPC: 698672000109 | Harmonization / Schedule B : 8483.60.8000

Country of Origin: United States | Shipping Weight: 0.3 lbs

$77.89 - $77.89
$77.89
$77.89 - $77.89
$77.89

Buna N Spider Insert, Coupling Size L190, Outside Diameter 4 15/32 in, System of Measurement Inch, Maximum Speed 5,000 RPM, Horsepower @ 100 RPM 2.7 hp, Spider Material Buna-N, Maximum Torque 1,726 in-lb, Parallel Misalignment 0.015 in, Durometer Hardness 80A, Angular Misalignment 1 Degrees , Color Black, Compatible Hub Manufacturer Part Number L190, Fail Safe Yes, For Maximum Hub Bore 2 1/8 in, For Misalignment Type Angular, Parallel

Item - Jaw Coupling Spiders Jaw Coupling Insert
Material - Spiders Buna N
Rated Torque 1,726 in-lb
Max. RPM 5,000 RPM
HP Rating @ 100 RPM 2.70
Temp. Range -40 Degrees to 212 Degrees F
Max. Torque (In.-Lbs.) 1726
HP Rating @ 300 RPM 8.1
HP Rating @ 1800 RPM 49
Serviceable Temp. Range (F) -40 to 212
Accommodates 1 Degrees Angular and 0.015 in of Parallel Misalignment
Max. Bore (In.) 2.125
HP Rating @ 1200 RPM 32
Type Buna N Spider
HP Rating @ 3600 RPM 98
Torque (In.-Lbs.) 1726
Color Black
Resistance Properties Oil Resistant
Working Torque 1,726 in-lb
Fail Safe Yes
Spider Material Buna-N
Spider Type Solid Center Spider
Maximum Operating Temperature 212 Degrees F
Angular Misalignment 1 Degrees
For Misalignment Type Angular, Parallel
System of Measurement Inch
Zero Backlash No
Minimum Operating Temperature -40 Degrees F
Number of Teeth 6
Horsepower @ 100 RPM 2.7 hp
Maximum Speed 5,000 RPM
Maximum Torque 1,726 in-lb
Compatible Hub Manufacturer Part Number L190
Horsepower @ RPM 33 hp @ 1200 RPM, 49 hp @ 1800 RPM, 99 hp @ 3600 RPM
For Maximum Hub Bore 2 1/8 in
Parallel Misalignment 0.015 in
Durometer Hardness 80A
Country of Origin United States
