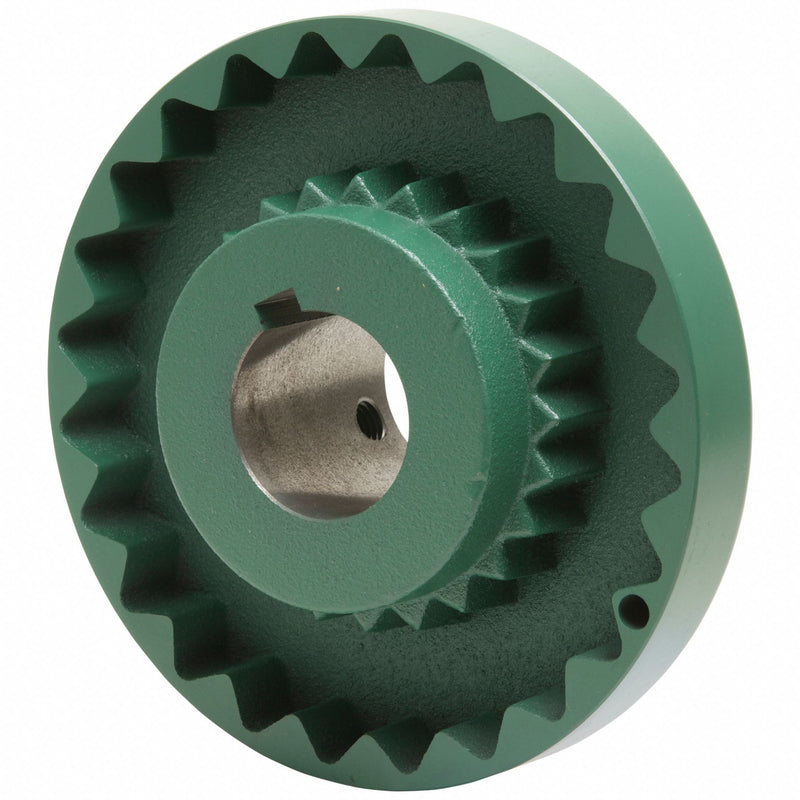

TB Wood's 8S178 Sleeve Coupling Flange, 8 Coupling Size, 4, 500 RPM Max Speed, 5 29/64 in Outside Dia, Inch

TB Wood's 8S178 Sleeve Coupling Flange, 8 Coupling Size, 4, 500 RPM Max Speed, 5 29/64 in Outside Dia, Inch

UPC: 698672640596 | Harmonization / Schedule B : 8483.60.8000

Country of Origin: Mexico | Shipping Weight: 4.13 lbs

$129.46 - $129.46
$129.46
$129.46 - $129.46
$129.46

Sleeve Coupling Flange, Coupling Size 8, Maximum Speed 4,500 RPM, Maximum Torque 1,475 in-lb, Outside Diameter 5 29/64 in, Bore Type Round Keyed, Hub Diameter 3 1/4 in, Hub Material Cast Iron, Bore Diameter 1 7/8 in, Length through Bore 2 3/32 in, System of Measurement Inch, Hub Body Length 3/4 in, Hub Type Flange Hub, Application Compressors, Conveyors, Motors, Pumps, Bore Tolerance +0.0005 in / +0.0015 in

Size - Sleeve Couplings 8
Bore Dia. 1 7/8 in
Outside Dia. 5.45 in
Keyway Size Type 1/2 in x 1/4 in
Hub Dia. (In.) 5.45 in
Keyseat Size (In.) 1/2 x 1/4
Outside Dia. (In.) 5.450
Height (In.) 5.45 in
Bore Dia. (In.) 1-7/8
Width (In.) 2.09 in
Length through Bore (In.) 2.09 in
Length through Bore 2 3/32 in
Hub Diameter 3 1/4 in
Outside Diameter 5 29/64 in
Bore Diameter 1 7/8 in
Keyway Depth 1/4 in
Coupling Size 8
Screw Thread Size 3/8"-16
Hub Body Length 3/4 in
Keyway Width 1/2 in
Item - Sleeve Coupling Flanges Sleeve Coupling Flange
Flange Type - Sleeve Couplings S
Bore Type - Couplings Fixed Bore
Setscrew Location One Over the Key and One at 90 Degrees
Max. Angular Misalignment 0.25 Degrees For Hytrel Sleeves, 1 Degrees For EPDM & Neoprene Sleeves
Bushing Required None
Max. RPM 4,500 RPM
Body Style Type-S Flange Close Coupled
Material of Construction cast iron
Ideal For Applications In Motors, Pumps, Compressors, Blowers, Mixers and Conveyors
Weight 4.4 lb
Application Compressors, Conveyors, Motors, Pumps
Hub Type Flange Hub
Hub Material Cast Iron
Resistance Properties Chemical Resistant, Oil Resistant
Maximum Speed 4,500 RPM
Maximum Torque 1,475 in-lb
Bore Type Round Keyed
Set Screw Location One Over the Key and One at 90 Degrees
Included Screws (2) Set Screws
Features 4-way Flexing Action Absorbs Shock, Misalignment and End Float, Vibration
Bore Tolerance +0.0005 in / +0.0015 in
System of Measurement Inch
For Misalignment Type Angular, Parallel
Country of Origin Mexico
