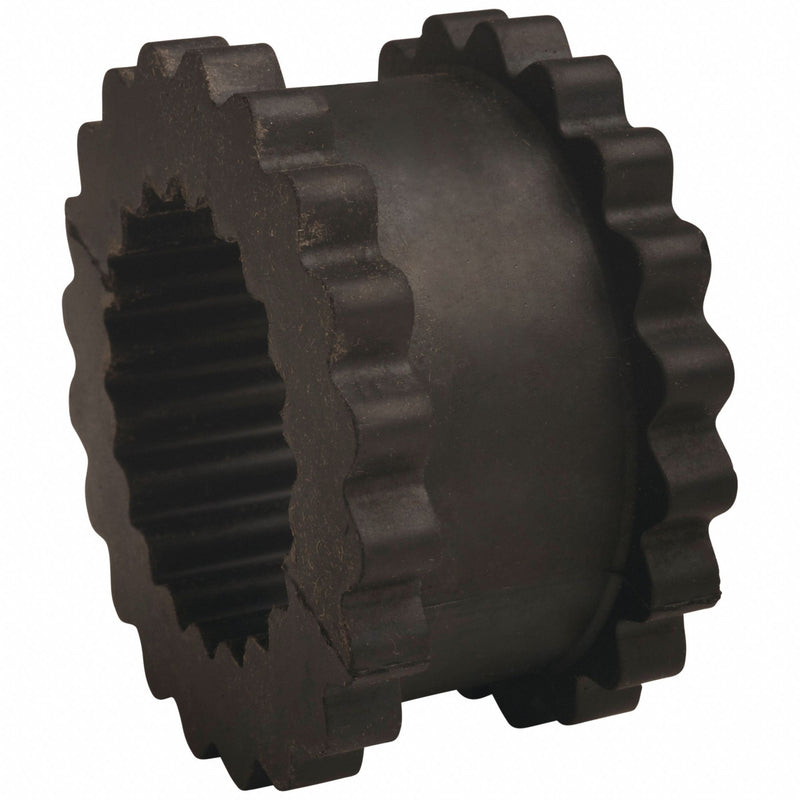

TB Wood's 5J Sleeve Coupling Insert, 5 Coupling Size, 7, 600 RPM Max Speed, 312 in-lb Rated Torque, EPDM

TB Wood's 5J Sleeve Coupling Insert, 5 Coupling Size, 7, 600 RPM Max Speed, 312 in-lb Rated Torque, EPDM

UPC: 698672630030 | Harmonization / Schedule B : 8483.60.8000

Country of Origin: United States | Shipping Weight: 0.22 lbs

$36.14 - $36.14
$36.14
$36.14 - $36.14
$36.14

Sleeve Coupling Insert, Coupling Size 5, Maximum Speed 7,600 RPM, Maximum Torque 312 in-lb, Outside Diameter 2 53/64 in, Insert Construction - New 1-Piece Solid, Angular Misalignment 1 Degrees , Horsepower @ 100 RPM 0.5 hp, Insert Material EPDM, Insert Width 1 9/16 in, Parallel Misalignment 0.015 in, System of Measurement Inch, Torsional Stiffness 916 in-lb/rad, Application Blowers, Compressors, Conveyors, Mixers, Motors, Pumps, Maximum Operating Temperature 275 Degrees F

Coupling Size 5
Insert Width 1 9/16 in
Outside Diameter 2 53/64 in
Flange Type - Sleeve Couplings JE
Insert Design One-Piece Solid
Insert Material EPDM
Maximum Torque 312 in-lb
Maximum Speed 7,600 RPM
Angular Misalignment 1 Degree
Parallel Misalignment 0.015 in
Body Style 5JE
Operating Temp. -30 Degrees to 275 Degrees F
HP Rating @ 1200 RPM 5.94 hp
HP Rating @ 3600 RPM 17.82 hp
HP Rating @ 1800 RPM 8.91 hp
Application Blowers, Compressors, Conveyors, Mixers, Motors, Pumps
Minimum Operating Temperature -30 Degrees F
Weight 0.2 lb
Horsepower @ 100 RPM 0.5 hp
Horsepower @ RPM 18 hp @3,600 RPM, 8.9 hp @1,800 RPM
For Misalignment Type Angular, Parallel
Maximum Operating Temperature 275 Degrees F
Torsional Stiffness 916 in-lb/rad
Features 4-Way Flexing Action Absorbs Shock, Misalignment and End Float, Vibration
Resistance Properties Chemical Resistant, Oil Resistant
System of Measurement Inch
Country of Origin United States
