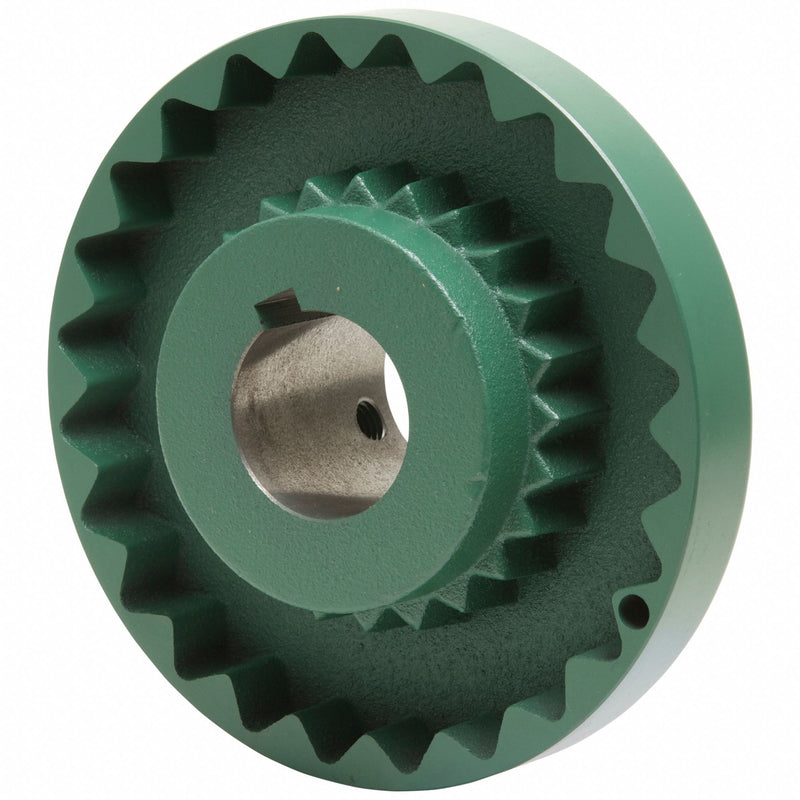

TB Wood's 10S238 Sleeve Coupling Flange, 10 Coupling Size, 3, 600 RPM Max Speed, 7 1/2 in Outside Dia, Inch

TB Wood's 10S238 Sleeve Coupling Flange, 10 Coupling Size, 3, 600 RPM Max Speed, 7 1/2 in Outside Dia, Inch

UPC: 698672641005 | Harmonization / Schedule B : 8483.60.8000

Country of Origin: Mexico | Shipping Weight: 10.7 lbs

$246.06 - $246.06
$246.06
$246.06 - $246.06
$246.06

Sleeve Coupling Flange, Coupling Size 10, Maximum Speed 3,600 RPM, Maximum Torque 3,735 in-lb, Outside Diameter 7 1/2 in, Bore Type Round Keyed, Hub Diameter 4 3/8 in, Hub Material Cast Iron, Bore Diameter 2 3/8 in, Length through Bore 2 23/32 in, System of Measurement Inch, Hub Body Length 13/16 in, Hub Type Flange Hub, Application Compressors, Conveyors, Motors, Pumps, Bore Tolerance +0.0005 in / +0.0020 in

Size - Sleeve Couplings 10
Bore Dia. 2 3/8 in
Outside Dia. 7.5 in
Keyway Size Type 5/8 in x 5/16 in
Hub Dia. (In.) 7.5 in
Keyseat Size (In.) 5/8 x 5/16
Length through Bore (In.) 2.72 in
Height (In.) 7.5 in
Outside Dia. (In.) 7.500
Bore Dia. (In.) 2-3/8
Width (In.) 2.72 in
Length through Bore 2 23/32 in
Screw Thread Size 3/8"-16
Hub Diameter 4 3/8 in
Keyway Width 5/8 in
Hub Body Length 13/16 in
Coupling Size 10
Keyway Depth 5/16 in
Outside Diameter 7 1/2 in
Bore Diameter 2 3/8 in
Item - Sleeve Coupling Flanges Sleeve Coupling Flange
Flange Type - Sleeve Couplings S
Bore Type - Couplings Fixed Bore
Ideal For Applications In Motors, Pumps, Compressors, Blowers, Mixers and Conveyors
Material of Construction cast iron
Max. RPM 3,600 RPM
Bushing Required None
Body Style Type-S Flange Close Coupled
Setscrew Location One Over the Key and One at 90 Degrees
Max. Angular Misalignment 0.25 Degrees For Hytrel Sleeves, 1 Degrees For EPDM & Neoprene Sleeves
Hub Type Flange Hub
Application Compressors, Conveyors, Motors, Pumps
Weight 10.5 lb
Maximum Torque 3,735 in-lb
System of Measurement Inch
Bore Tolerance +0.0005 in / +0.0020 in
Hub Material Cast Iron
For Misalignment Type Angular, Parallel
Resistance Properties Chemical Resistant, Oil Resistant
Maximum Speed 3,600 RPM
Bore Type Round Keyed
Included Screws (2) Set Screws
Features 4-way Flexing Action Absorbs Shock, Misalignment and End Float, Vibration
Set Screw Location One Over the Key and One at 90 Degrees
Country of Origin Mexico
