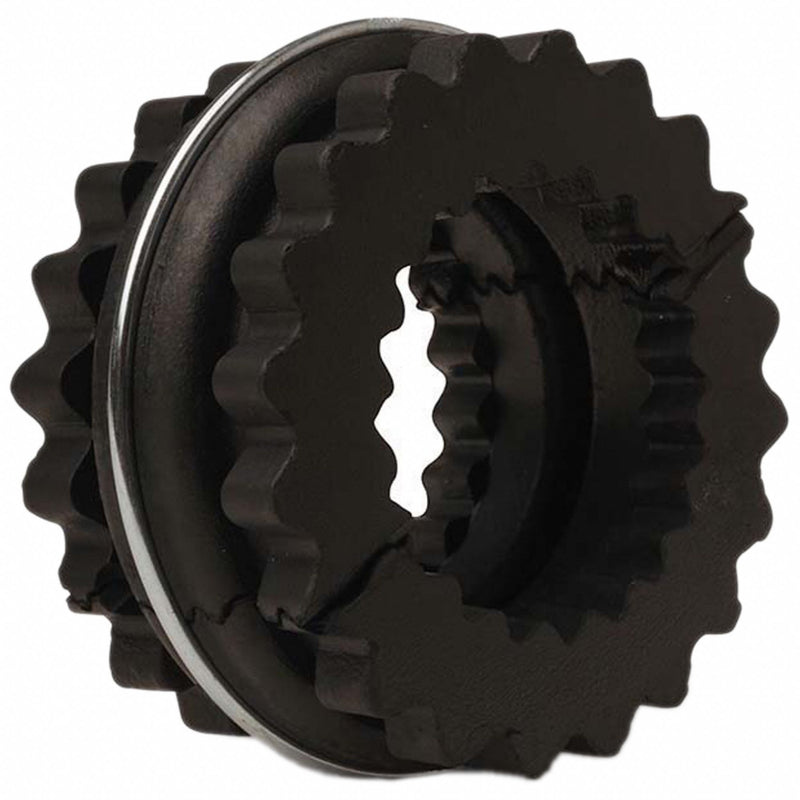

TB Wood's 10 Sleeve Coupling Insert, 10 Coupling Size, 3,600 RPM Max Speed, 3,735 in-lb Rated Torque

TB Wood's 10 Sleeve Coupling Insert, 10 Coupling Size, 3,600 RPM Max Speed, 3,735 in-lb Rated Torque

UPC: 698672660075 | Harmonization / Schedule B : 8483.60.8000

Country of Origin: United States | Shipping Weight: 3.38 lbs

$238.46 - $238.46
$238.46
$238.46 - $238.46
$238.46

Sleeve Coupling Insert, Coupling Size 10, Maximum Speed 3,600 RPM, Maximum Torque 3,735 in-lb, Outside Diameter 7 1/16 in, Insert Construction - New 1-Piece Solid, Angular Misalignment 1 Degrees , Horsepower @ 100 RPM 5.9 hp, Insert Material EPDM, Insert Width 3 7/16 in, Parallel Misalignment 0.025 in, System of Measurement Inch, Torsional Stiffness 10,980 in-lb/rad, Application Blowers, Compressors, Conveyors, Mixers, Motors, Pumps, Maximum Operating Temperature 275 Degrees F

Coupling Size 10
Insert Width 3 7/16 in
Outside Diameter 7 1/16 in
Flange Type - Sleeve Couplings E
Insert Design Two-Piece with Retaining Ring
Insert Material EPDM
Maximum Torque 3,735 in-lb
Maximum Speed 3,600 RPM
Angular Misalignment 1 Degree
Parallel Misalignment 0.025 in
Operating Temp. -30 Degrees to 275 Degrees F
HP Rating @ 1800 RPM 106.67 hp
HP Rating @ 3600 RPM 213.34 hp
Body Style 10E
HP Rating @ 1200 RPM 71.11 hp
Application Blowers, Compressors, Conveyors, Mixers, Motors, Pumps
Maximum Operating Temperature 275 Degrees F
System of Measurement Inch
Weight 3.2 lb
Minimum Operating Temperature -30 Degrees F
Features 4-Way Flexing Action Absorbs Shock, Misalignment and End Float, Vibration
Torsional Stiffness 10,980 in-lb/rad
Resistance Properties Chemical Resistant, Oil Resistant
Horsepower @ 100 RPM 5.9 hp
Horsepower @ RPM 107 hp @1,800 RPM, 213 hp @3,600 RPM
For Misalignment Type Angular, Parallel
Country of Origin United States
