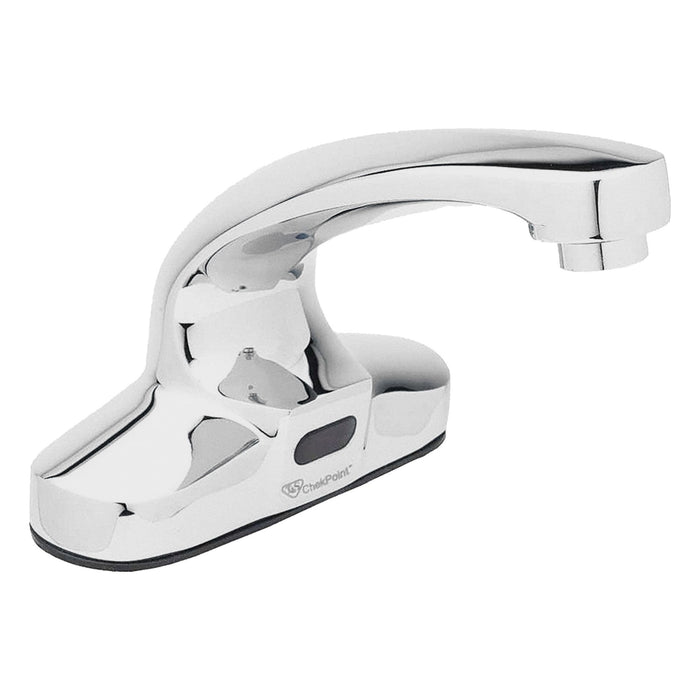

T&S Brass EC-3103 Bathroom Sensor Faucet, Checkpoint, Brass, Chrome, Centerset Deck Mount, Arc, Battery, 2.2 gpm

T&S Brass EC-3103 Bathroom Sensor Faucet, Checkpoint, Brass, Chrome, Centerset Deck Mount, Arc, Battery, 2.2 gpm

UPC: 671262667739 | Harmonization / Schedule B : 8481.80.9020

Country of Origin: United States | Shipping Weight: 8.15 lbs

$810.51 - $810.51
$810.51
$810.51 - $810.51
$810.51

Bathroom Faucet, Faucet Operation Sensor, Number of Handles 0, Faucet Handle Type None, Connection 3/8 In. Compression, 2.20 gpm Flow Rate, Number of Holes 1, Mounting Hole Center to Center 4 In., Body Material Brass, Faucet Spout Shape Straight, ADA Compliant Yes, Drain Type None, Mounting Type - Faucet Surface, Power Source Battery, Voltage 110VDC, Spout Length 4-7/8 In., Sensor Range 2 In. to 20 In., Valve Type Compression, Faucet Finish Chrome, Height 5-1/16 In.

Material Brass
Application Commercial
Finish Chrome
Faucet Operation Sensor
Flow Rate 2.2 gpm
Voltage 110V DC
CEC Compliant Non CEC Compliant
Commercial / Residential Commercial
Replacement Cartridge None
Body Material Brass
Faucet Type Bathroom Sink Faucet
Ligature Resistant No
Battery Charger CEC Compliant Non CEC Compliant
Vandal Resistant Features Vandal Resistant Outlet
Residential / Commercial Commercial
Power Source Battery
Drain Type None
Number of Holes 3
Faucet Spout Shape Low Arc
Connection 3/8" Compression
ADA Compliance ADA Compliant
Number of Handles 0
ADA Compliant Yes
Faucet Finish Chrome
Mounting Type - Faucet Deck
Sensor Range 5 1/2 in
Standards ASME A112.18.1/CSA B125.1, NSF 372, NSF 61/9, UL Certified
Series Checkpoint
Flow Outlet Type (Faucet) Aerated
Includes Control Module
Faucet Handle Type None
Flow Outlet Type - Faucet Aerated
Features 4 in deck mount faucet w/ polished chrome plated brass body with integral spout, 2.2 GPM vandal resistant aerator, Series 8 (B-0199-08), Water resistant control module w/ internal flow control switches for adjusting auto time out & shut off delay settings, Optional auto flush feature flows water for 30 seconds after every 12 inactive hours, Plug in AC transformer or (4) AA battery (DC) power options, Mechanical temperature mixing valve with check valves, 18 in flexible stainless steel supply hoses with 3/8 in compression connections, Low battery LED indicator light, Material: Polished chrome plated brass body
Flow Outlet Type Vandal Resistant Aerator
Mounting Type Deck
Spout Reach 4 7/8 in
Temperature Control Adjustable Temperature
Water Inlet Connection Type Push in Compression
Faucet Activation Motion Sensor
Faucet Body Material Brass
Replacement Cartridge Mfr. Model Number 5EF-0006
Valve Type - Faucets Hot/Cold Cartridge
Max. Mounting Hole Center Distance 4 in
Battery Type AA
Mounting Hole Center-to-Center Distance - Maximum 4 in
Operation Method Motion Sensor
Ligature Resistance Not Ligature-Resistant
Number of Mounting Holes 2
Number of Batteries 2
Product Type Sensor Faucet
Includes Batteries Batteries Included
Sensor Range - Minimum 3/4 in
Mounting Hole Center-to-Center Distance - Minimum 4 in
CEC Compliance Not CEC Compliant
Flow Rate - Maximum 2.2 gpm
Temperature - Maximum 140 Degrees F
Temperature - Minimum 40 Degrees F
Time Out 30 sec
Sensor Range - Maximum 12 in
Inlet Connection Type Compression
For Location Bathroom
Pressure - Maximum 125 psi
Spout Shape Arc
Vandal Resistance Vandal-Resistant Outlet
Warranty 1 yr Parts
Flow Type Aerated
Includes Handle Handle Not Included
Water Supply Type Hot and Cold Lines
Compatible Cartridge Manufacturer Part Number 5EF-0006
Country of Origin United States
