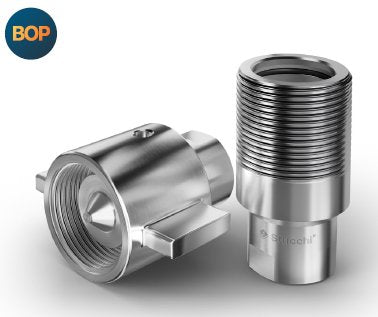

Stucchi VOF Series 811201006 Interchange Nipple, 1-1/2 In Male x 1-1/2 NPT, Steel

UPC: | Harmonization (Schedule B): 7307.29.0030

SKU KV811201006
Original price $236.79 - Original price $236.79
Original price
$236.79 - $236.79
Current price $236.79

Stucchi® Interchange Nipple, VOF Series, Nipple Fitting, 1-1/2 in Connection Size 1, Male Connection Type 1, 1-1/2 in Connection Size 2, NPT Connection Type 2, Male|NPT Connection, Steel, Carbon Steel Material Construction, Zinc-Plated, 2-1/4 in Hex, 5.95 in L, 5000 psi Maximum Operating Pressure, -20 to 100 deg C Operating, NBR Seal Material


  • Connection under residual pressure is allowed in one side up to 15 MPa (5 MPa for VOF200)
  • Inspection hole to control if the coupling is completely connected
  • Wrench flat on the bodies to facilitate the fitting assembly
  • The poppet valve with elastomer seal provides maximum sealing of the couplings when disconnected
  • Retainer in higher resistance carbon steel
  • Shape of internal parts is designed to reduce turbulence and pressure drop
  • High resistance with impulse pressures (500.000 connected)
  • Compact design
  • Simple to use
  • Fire tested and Lloyd certified in accordance with API 16D and the EUB Directive #36


Additional Information      :      NBR Seal Material
Connection Size 1      :      1-1/2 in
Connection Size 2      :      1-1/2 in
Connection Type 1      :      Male
Connection Type 2      :      NPT
Connection Type      :      Male|NPT
Dimensions      :      5.95 in L
Finish      :      Zinc-Plated
Fitting Type      :      Nipple
Hex Size      :      2-1/4 in
Material Construction      :      Carbon Steel
Material      :      Steel
Maximum Operating Pressure      :      5000 psi
Operating Temperature      :      -20 to 100 deg C
Series      :      VOF Series

VOF is a screw coupling series in carbon steel typically used in oil and gas applications. Fire tested in accordance with API 16D and the EUB Directive #36, also known as fire safe rating, this certification means that our VOF Series are suitable for drilling blow out prevention (BOP) circuits.
