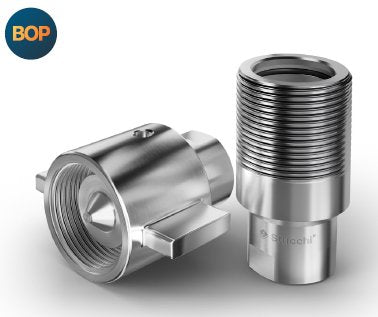

Stucchi VOF Series 811201001 Interchange Coupler, 1 In Male x 1 In NPT, Steel

Stucchi® Interchange Coupler, VOF Series, Coupling Fitting, 1 in Connection Size 1, Male Connection Type 1, 1 in Connection Size 2, NPT Connection Type 2, Male|NPT Connection, Steel, Carbon Steel Material Construction, Zinc-Plated, 1.63 in Hex, 3.44 in L, 5000 psi Maximum Operating Pressure, -20 to 100 deg C Operating, NBR Seal Material

Features:

• Connection under residual pressure is allowed in one side up to 15 MPa (5 MPa for VOF200)
• Inspection hole to control if the coupling is completely connected
• Wrench flat on the bodies to facilitate the fitting assembly
• The poppet valve with elastomer seal provides maximum sealing of the couplings when disconnected
• Retainer in higher resistance carbon steel
• Shape of internal parts is designed to reduce turbulence and pressure drop
• High resistance with impulse pressures (500.000 connected)
• Compact design
• Simple to use
• Fire tested and Lloyd certified in accordance with API 16D and the EUB Directive #36

Specifications:

VOF is a screw coupling series in carbon steel typically used in oil and gas applications. Fire tested in accordance with API 16D and the EUB Directive #36, also known as fire safe rating, this certification means that our VOF Series are suitable for drilling blow out prevention (BOP) circuits.
