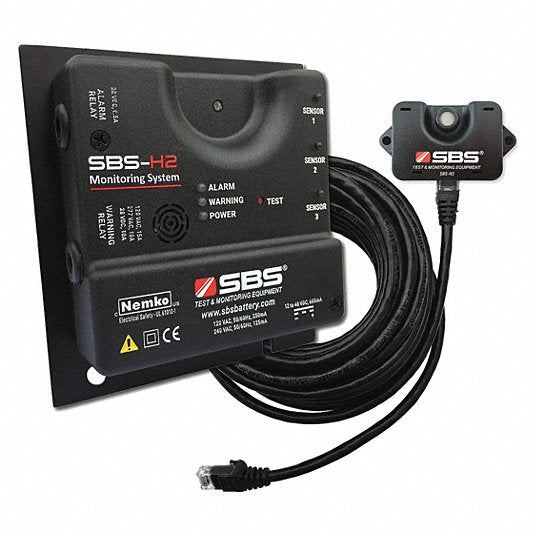

Storage Battery SBS-H2 Hydrogen Gas Detector H2, 0 Channels, 120 V AC/12 to 48 V DC/220 Vac

UPC: | Harmonization / Schedule B : 9027.10.0000

Country of Origin: United States | Shipping Weight: 1.6 lbs

Save 9% Save 9%
Original price $1,994.01
Original price $1,994.01 - Original price $1,994.01
Original price $1,994.01
Current price $1,806.99
$1,806.99 - $1,806.99
Current price $1,806.99
Hydrogen Gas Detector Gas Type H2 Number of Channels 0 Sensor Range 1 Percent and 2 Percent / 25 Percent and 50 Percent LEL Alarm Type Audible and Visual Display LED Status Indicator Yes Features On Board Relays At 1 Percent and 2 Percent Hydrogen Concentration Dry Contacts Can Be Monitored By Scada Modbus Etc NEMA Rating Type 1 IP Rating IP10 Connection Plugs/Terminals For Use With Stand Alone Building Automation Systems Fire Alarm Panels Burglary Alarm Panels

For Use With Building Automation Systems, Burglary Alarm Panels, Fire Alarm Panels
Gas Detected Hydrogen
Sensor Range 1% and 2% / 25% and 50% LEL
Operating Temp. Range 32 Degrees to 122 Degrees F
Features Modular Design for Optimal Placement of Sensor(S), Strobe Light for Visual Alerts
Gas Type H2
Includes 25 ft. Cable, Hydrogen Sensor, Main Control
Standards CAN/CSA-C22.2 No. 61010-1-12, cNemkous, NRTL/C Certified: UL Std. No. 61010-1
Status Indicator LED
Power Required 12 to 48 V DC, 120 V AC, 220 Vac
NEMA Rating Type 1
Housing Color Black
Product Type Fixed Gas Detector
IP Rating IP10
Color Black
Number of Channels 0
Display LED
Alarm Type Audible and Visual
Connection Plugs/Terminals
Alarm Volume Level 85 dB @ 10 ft
NEMA Enclosure Rating 1
Alert Type Sound
Operating Humidity - Maximum 85 %
Display Screen Type LED
Output Channels 0
Operating Humidity - Minimum 20 %
Operating Temperature - Maximum 122 Degrees F
Measurement Range Hydrogen (1%), Hydrogen (2%/25%), Hydrogen (50% LEL)
Input Current 125 mA @ 185 to 242V AC (Terminal J8), 250mA @ 93 to 121V AC (Terminal J8), 600 mA @ 9 to 58V DC (Terminal J9)
Operating Temperature - Minimum 32 Degrees F
Operating Frequency 50/60 Hz
Number of Gases Detected 1
