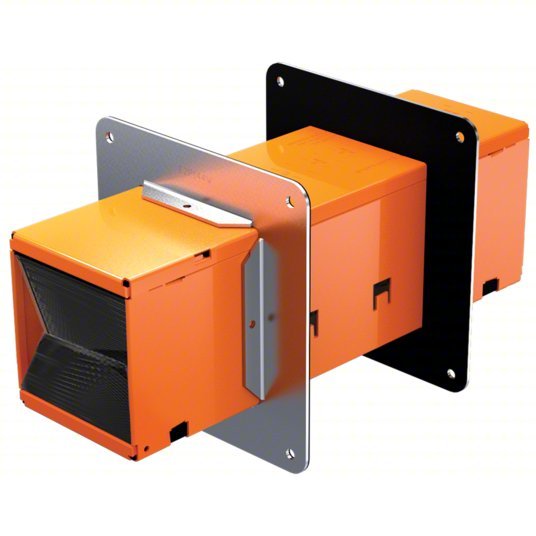

STI EZDP44S2 Fire Barrier Pathway Rectangular, 6.5 in Overall Ht, 14 in Overall Lg, 4.5 in Overall Wd
UPC: 730573001066 | Harmonization (Schedule B): 7326.19.0000
SKU KV49VU22
Original price
$481.55
-
Original price
$481.55
Original price
$481.55
$481.55
-
$481.55
Current price
$481.55
Fire Barrier Pathway, Cable Loading Area 12.66 sq in, Fire Rating 1 hr, 1 to 2 hr, 2 hr, 3 hr, 30 min, 4 hr, Not Rated, For Pipe Size Not Applicable, For Use On Cable, Cable Trays, Includes (2) Gaskets, (2) Mounting Plates, Labels, Series 44 Device, Includes Mounting Hardware Yes, Outside Diameter Not Applicable, Overall Height 6.5 in, Overall Length 14 in, Overall Width 4.5 in, Shape Rectangular, Usage Location Fire-Rated Walls and Floors, Body Material Steel, Body Material Finish Galvanized
| Shape | Rectangle |
| Material | Steel |
| Item | Firestop Pathway |
| Color | Orange |
| Includes | Plates, Gaskets, Labels |
| Fire Rating | Up to 4 hr |
| Standards | ASTM E814 (UL 1479), CAN/ULC-S115, UL Certified |
| For Use On | Cable, Cable Trays |
| Features | Built-In Fire and Smoke Sealing System that Automatically Adjusts to the Amount of Cables Installed |
| Minimum Service Temperature | -10 Degrees F |
| Body Material | Steel |
| Expansion Temperature | 350 Degrees F |
| Body Material Finish | Galvanized |
| Fire Resistance Type | Intumescent |
| Includes Mounting Hardware | Yes |
| Cable Loading Area | 12.66 sq in |
| Expansion Volume | 15X |
| Paintable | Yes |
| Usage Location | Fire-Rated Walls and Floors |
| Maximum Service Temperature | 120 Degrees F |
| Firestop Type | Pass Through Devices for Walls and Ceilings |
