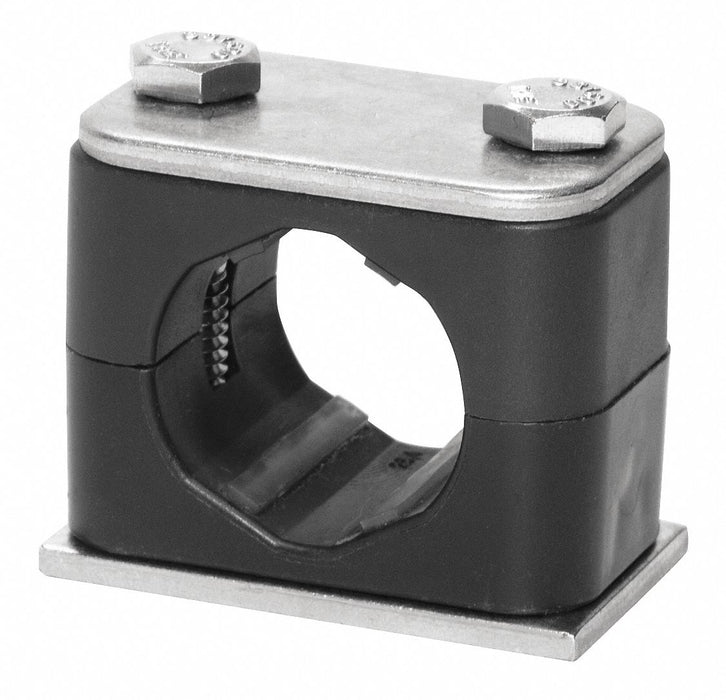

STAUFF SP-535 Beta Clamp Kit, 35 mm Tube OD

Stauff SP-535-ACT-DP-AS-U-W5-K-642012 Beta Clamp Kit, 35 mm Tube OD, Smooth Bore, 316 Stainless Steel, Polypropylene Cushion, Weld-On

UPC: | Harmonization / Schedule B : 7326.90.8688

Country of Origin: Germany | Shipping Weight: 0.35 lbs

$45.19 - $45.19
$45.19
$45.19 - $45.19
$45.19

Beta Clamp, Clamp Bore Style Smooth, Clamp Material 316 Stainless Steel, Clamp Material Finish Elastomer, Clamp Type Weld Mount Assembly, Cushion Material Polypropylene, For Maximum Outside Diameter 35 mm, For Number of Lines 1

Material 316 Stainless Steel
Type Anti-Corrosion Weld Mount Standard Clamp
Temp. Range (F) -13 Degrees to 194 Degrees
Includes (2) Hex Head Bolts, Clamp Set, Cover Plate, Weld Plate
Hardware Material 316 Stainless Steel
Max. Pressure (PSI) 2000
Standards API RP 552, DIN 3015-1, NACE SP 0108-2008
Insert Material Polypropylene
Series Standard
Clamp Material Finish Elastomer
For Use On Hose, Pipe, Tube Support
Maximum Operating Temperature 194 Degrees F
Cushion Material Polypropylene
System of Measurement Metric
Maximum Operating Pressure 2,000 psi
Clamp Bore Style Smooth
Resistance Properties Oil Resistant, Rain Resistant, Seawater Resistant
Includes Mounting Hardware Yes
Mount Type Weld-On
Clamp Type Weld Mount Assembly
Clamp Style Weld Mount Clamp
Features Flame Retardant Polypropylene with Integrated Elastomer Drainage Strips
Clamp Material 316 Stainless Steel
Minimum Operating Temperature -13 Degrees F
Load Capacity 1,570 lb
For Number of Lines 1
Country of Origin Germany
