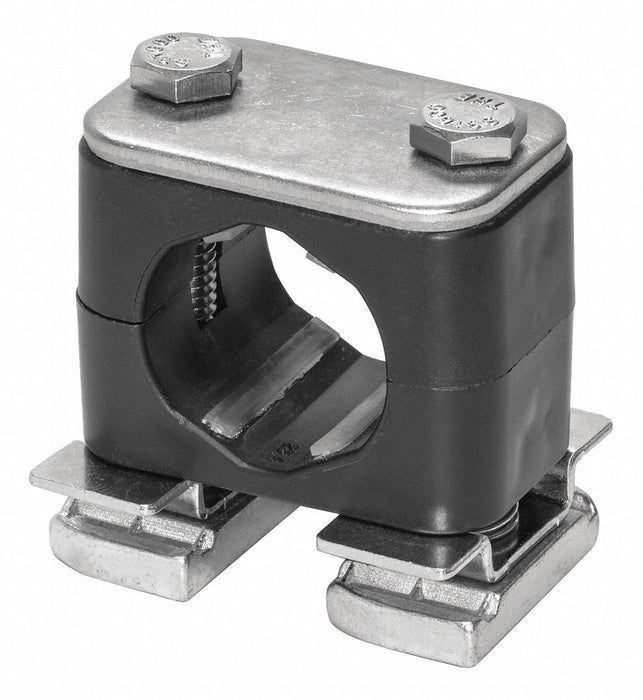

STAUFF CRA-535 Beta Clamp Rail-Mount

Stauff CRA-535-ACT-DP-AS-U-W5-K-642012 Beta Clamp Kit, 35 mm Tube OD, Smooth Bore, 316 Stainless Steel, Polypropylene Cushion, Rail-Mount

UPC: | Harmonization / Schedule B : 7326.90.8688

Country of Origin: Germany | Shipping Weight: 0.6 lbs

$64.05 - $64.05
$64.05
$64.05 - $64.05
$64.05

Beta Clamp, Clamp Bore Style Smooth, Clamp Material 316 Stainless Steel, Clamp Material Finish Elastomer, Clamp Type Rail Mount Assembly, Cushion Material Polypropylene, For Maximum Outside Diameter 35 mm, For Number of Lines 1

Bore Style Smooth
Clamp Material 316 Stainless Steel
Clamp Material Finish Elastomer
Clamp Type Rail Mount Assembly
Cushion Material Polypropylene
For Maximum Outside Diameter 35 mm
For Number of Lines 1
Hardware Material 316 Stainless Steel
Includes (1) Rail Nut, (1) Hex Head Bolt, Clamp Set, Cover Plate
Insert Material Polypropylene
Maximum Operating Pressure 2,000 psi
Maximum Operating Temperature 194 Degrees F
Minimum Operating Temperature -13 Degrees F
Mount Type Rail-Mount
Resistance Properties Corrosion Resistant
Series Standard
Standards API RP 552, DIN 3015-1, NACE SP 0108-2008
System of Measurement Metric
Type Anti-Corrosion Rail Mount Standard Clamp
Country of Origin Germany
