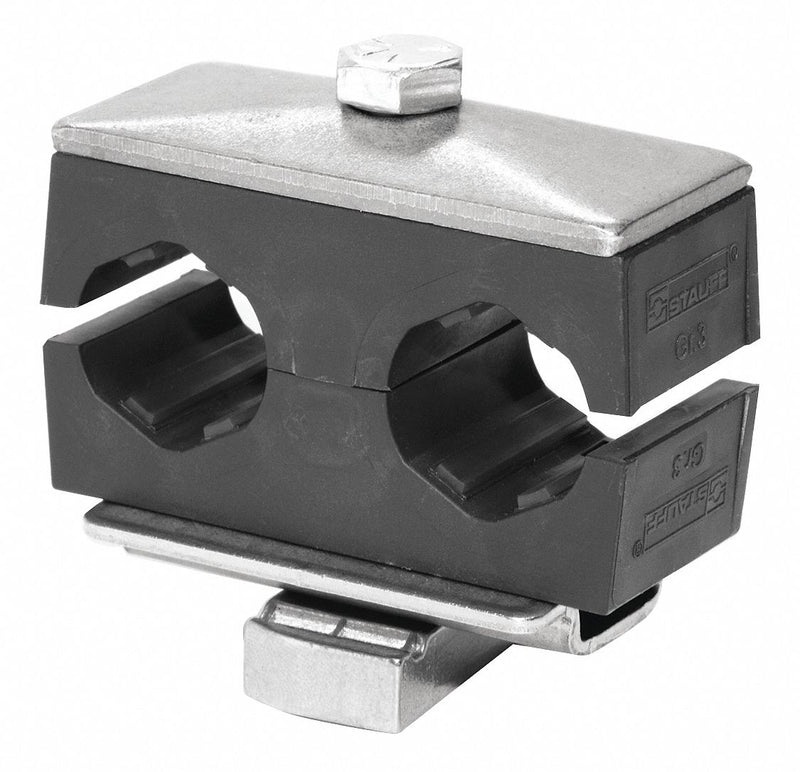

Stauff CRA-212.7/12.7-ACT-GD-AS-U-W5-K-642012 Twin Beta Clamp Kit

Stauff CRA-212.7/12.7-ACT-GD-AS-U-W5-K-642012 Twin Beta Clamp Kit, 12-11/16 mm Tube OD, Smooth Bore, 316 Stainless Steel, Polypropylene Cushion, Rail-Mount, 2 Lines

UPC: | Harmonization / Schedule B : 7326.90.8630

Country of Origin: Germany | Shipping Weight: 1.0 lbs

$84.55 - $84.55
$84.55
$84.55 - $84.55
$84.55

Beta Clamp, Clamp Bore Style Smooth, Clamp Material 316 Stainless Steel, Clamp Material Finish Elastomer, Clamp Type Strut Mount Twin Assembly, Cushion Material Polypropylene, For Maximum Outside Diameter 12 11/16 mm, For Number of Lines 2, For Strut Channel Width 41 5/16 mm

Material 316 Stainless Steel
Type Anti-Corrosion Strut Mount Twin Clamp
Standards API RP 552, DIN 3015-1, NACE SP 0108-2008
Temp. Range (F) -13 Degrees to 194 Degrees
Includes (2) Hex Bolts, (2) Strut Rail Adaptors, Clamp Set, Cover Plate
Insert Material Polypropylene
Hardware Material 316 Stainless Steel
Max. Pressure (PSI) 2000
Maximum Operating Pressure 2,000 psi
Minimum Operating Temperature -13 Degrees F
For Number of Lines 2
Resistance Properties Corrosion Resistant
Load Capacity 1,570 lb
Mount Type Rail-Mount
Clamp Bore Style Smooth
Clamp Type Strut Mount Twin Assembly
Clamp Material Finish Elastomer
Includes Mounting Hardware Yes
Series Twin
System of Measurement Metric
Cushion Material Polypropylene
Maximum Operating Temperature 194 Degrees F
Clamp Material 316 Stainless Steel
Country of Origin Germany
