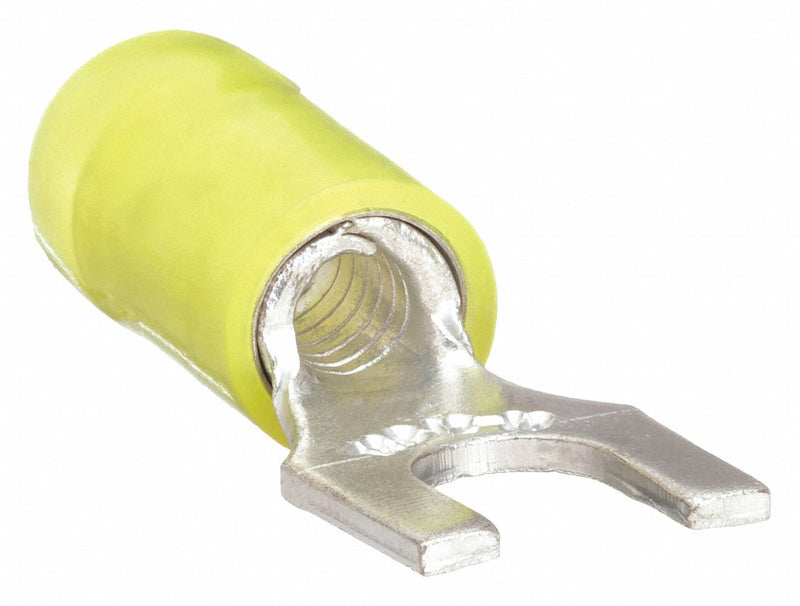

Sta-Kon RC10-10F Fork Terminals, Yellow, Nylon, #10 Stud Size, 12 AWG – 10 AWG Wire Range, Std Fork, 600 V

Sta-Kon RC10-10F Fork Terminals, Yellow, Nylon, #10 Stud Size, 12 AWG – 10 AWG Wire Range, Std Fork, 600 V

UPC: 786210804392 | Harmonization / Schedule B : 8536.90.4000

Country of Origin: United States | Shipping Weight: 0.15 lbs

$119.64 - $119.64
$119.64
$119.64 - $119.64
$119.64

Fork Terminal, Contact Finish Tin, Contact Material Copper, Insulation Color Yellow, Insulation Coverage Partial Coverage, Insulation Material Nylon, Maximum Operating Temperature 221 Degrees F, Maximum Voltage 600 V, Maximum Wire Size 10 AWG, Stud Size #10, Termination Style Crimp, Tongue Length 0.42 in, RoHS Compliant No, Seam Style Brazed, Standards CSA Certified, UL Listed, Barrel Length 0.54 in, Barrel Style Insulation Grip, 3KH52, 4XMR5

Maximum Wire Size 10 AWG
Minimum Wire Size 12 AWG
Stud Size #10
Overall Length 1 in
Tongue Width - Wire Connector 0.37 in
Barrel Length 0.54 in
Tongue Width 0.37 in
Tongue Length 1/2 in
Wire Rope Length 1 in
Length 1 in
MFR # RC10-10F
Zoro # G1111345
UPC # 786210804392
Country of Origin United States
Terminal Shape Standard Fork
Termination Style Crimp Termination Only
Insulation Color Yellow
Insulation Coverage Partial Coverage
Insulation Type Nylon
Contact Material Copper
Maximum Voltage 600 V
Maximum Operating Temperature 221 Degrees F
Standards CSA Certified, UL Listed E9809
Connection Type Crimp
Seam Overlapped
Wire Range 12 to 10 AWG
Connection Material Copper
Max. Temp. 221 Degrees F
Terminal Connection Crimp
Terminal Type Standard
Features Inner bronze insulation grip sleeve lengthens flex radius of conductor and eliminates conductor creep.; Nylon jacket is color-coded.; Application Tools: WT145C, WT2000, WT112M, ERG4001, WT145A; Alternate Package Qty: RC1153
Compatible with Series RC1153
Compatible Manufacturer Model Number ERG4001, WT112M, WT145A, WT145C, WT2000
Contact Finish Tin
RoHS Compliant No
Special Features Inner Bronze Insulation Grip Sleeve Lengthens Flex Radius of Conductor and Eliminates Conductor Creep
Insulation Material Nylon
Barrel Style Insulation Grip
Seam Style Brazed
Compatible with Product Type Crimper, Ratchet Crimper
Insulation Dia 0.21 in
Surface protection Tinned
Series RC1153
Country of Origin USA (subject to change)
