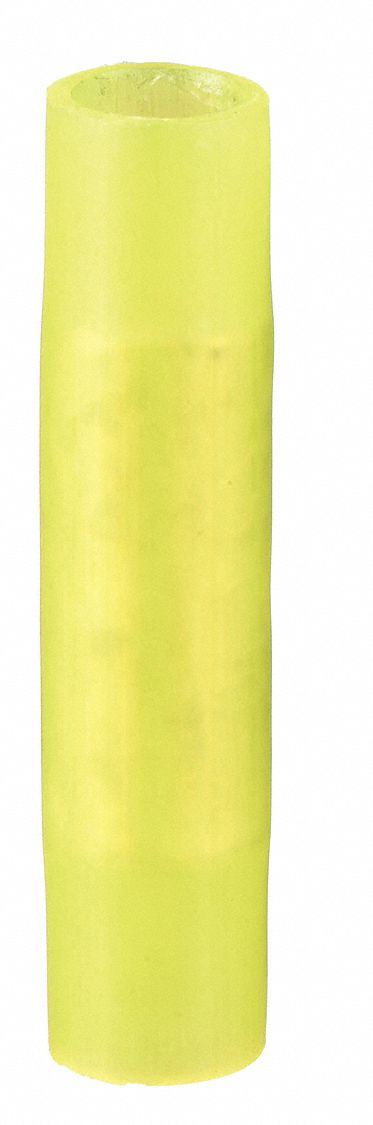

Sta-Kon 2RC10 Butt Splice Connector, Yellow, Nylon, For Wire Size 12 AWG – 10 AWG, 600 V, Pack Qty 50

Sta-Kon 2RC10 Butt Splice Connector, Yellow, Nylon, For Wire Size 12 AWG – 10 AWG, 600 V, Pack Qty 50

UPC: | Harmonization / Schedule B : 8536.90.4000

Country of Origin: United States | Shipping Weight: 0.35 lbs

$139.29 - $139.29
$139.29
$139.29 - $139.29
$139.29

Splice Connector, Connection Type Crimp, Insulation Material Nylon, Insulation Color Yellow, Maximum Operating Temperature 221 Degrees F, Maximum Voltage 600 V, Minimum Wire Size 12 AWG, Maximum Wire Size 10 AWG, Standards MIL-T-7928, UL E9809, Termination Style Crimp, Contact Material Copper, Overall Length 1.26 in, Seam Style Overlapped, Barrel Inside Diameter 0.21 in, Body Finish Tin Plated, Body Material Copper, Compatible Installation Tool Model Number ERG4001, WT112M, WT145C

Maximum Wire Size 10 AWG
Minimum Wire Size 12 AWG
Overall Length 1.26 in
Barrel Inside Dia. 0.21 in
Overall Width 0.28 in
For Maximum Wire Insulation Diameter 0.21 in
Barrel Inside Diameter 0.21 in
For Maximum Wire Size - Solid 10 AWG
For Minimum Wire Size - Solid 12 AWG
Wire Rope Length 1.26 in
Length 1.26 in
MFR # 2RC10
Zoro # G3066865
UPC # -
Country of Origin United States
Type Butt Splice
Color Yellow
Insulation Material Nylon
Maximum Voltage 600 V
Maximum Operating Temperature 221 Degrees F
RoHS Compliant Yes
Standards MIL-T-7928, UL E9809
Material Copper
Seam Style Overlapped
Compatible Installation Tool Model Number ERG4001, WT112M, WT145C
Termination Style Crimp
Features Nylon insulated splices meet or exceed the requirements of MIL-T-7928.; These splices are color-coded according to wire size.; Application Tools: ERG4001, WT145C, WT112M; Alternate Package Qty: RCC21
Finish Electro Tin Plated
Special Features Nylon insulated splices meet or exceed the requirements of MIL-T-7928. These splices are color-coded according to wire size.
Contact Material Copper
Insulation Color Yellow
Body Material Copper
Body Finish Tin Plated
Country of Origin USA (subject to change)
