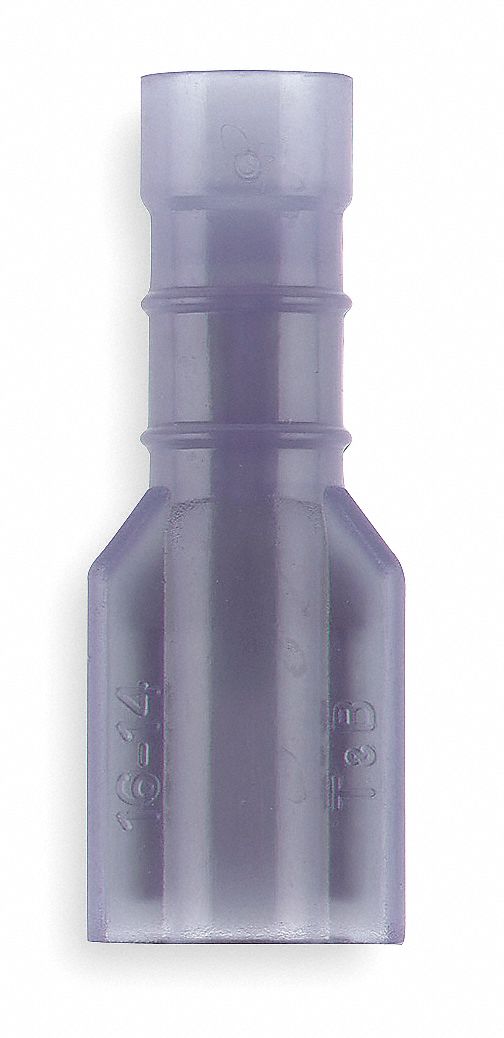

Sta-Kon 14RB-2577 Wire Disconnect, Female Socket, Blue, Nylon, Full Coverage, 16 AWG – 14 AWG Wire Size

Sta-Kon 14RB-2577 Wire Disconnect, Female Socket, Blue, Nylon, Full Coverage, 16 AWG – 14 AWG Wire Size

UPC: | Harmonization / Schedule B : 8536.90.4000

Country of Origin: United States | Shipping Weight: 0.4 lbs

$197.70 - $197.70
$197.70
$197.70 - $197.70
$197.70

Female Disconnect, Contact Finish Tin, Contact Material Brass, Insulation Color Blue, Insulation Coverage Full Coverage, Insulation Material Nylon, Maximum Operating Temperature 221 Degrees F, Minimum Wire Size 16 AWG, Maximum Wire Size 14 AWG, Maximum Voltage 600 V, Tab Thickness 0.032 in, Tab Width 0.25 in, Terminal Type Socket, Termination Style Crimp, UL 94 Flammability Rating Not Rated, RoHS Compliant No, Seam Style Brazed, Standards UL E66716, Barrel Inside Diameter 0.086 in

Tab Size 0.032 in x 0.250 in
Overall Length 1.01 in
Barrel Inside Dia. 0.086 in
Barrel Inside Diameter 0.086 in
Minimum Wire Size 16 AWG
Barrel Size Long
Tab Width 0.25 in
Maximum Wire Size 14 AWG
Tab Thickness 0.032 in
Stock Thickness 0.03
Wire Rope Length 1.01 in
Length 1.01 in
MFR # 14RB-2577
Zoro # G2230995
UPC # -
Country of Origin United States
Insulation Full
Material Brass
Insulation Color Blue
Color Blue
Wire Range 16 to 14 AWG
Connection Type Crimp
Insulation Type Nylon
Seam Brazed
Max. Temp. 221 Degrees F
Max. Voltage 600 V
Connection Material Tin-Plated Copper
Standards UL E66716
Features Unique construction of the female disconnect offers long-term dependability.; Brazed seam serrated barrel provides maximum tensile strength.; Application Tools: WT145C, WT2000, WT112M, ERG4001; Alternate Package Qty: RB2573
Seam Style Brazed
UL 94 Flammability Rating Not Rated
Contact Finish Tin
Maximum Voltage 600 V
Terminal Type Socket
Insulation Coverage Full Coverage
Barrel Style Funnel Entry
Special Features Brazed Seam Serrated Barrel
Termination Style Crimp
Maximum Operating Temperature 221 Degrees F
RoHS Compliant No
Insulation Material Nylon
Contact Material Brass
Disconnect Type Female - 250 Series
Maximum Insulation (inches) 0.185
A (inches) 0.97
Terminal Series RB
Temperature Rating 105°C
Flammability Rating UL 94 V-2
Application Tools WT145C, WT2000, WT112M, ERG4001, ERG4003
B (inches) 0.38
Finish Electro Tin-Plated
Voltage Rating 600V
Recommended Tool ERG4001
AWG-range 16-14
Material insulation PA
Type Nylon Fully Insulated Female Disconnect
Disconnect Style Quick Disconnect
Country of Origin USA (subject to change)
