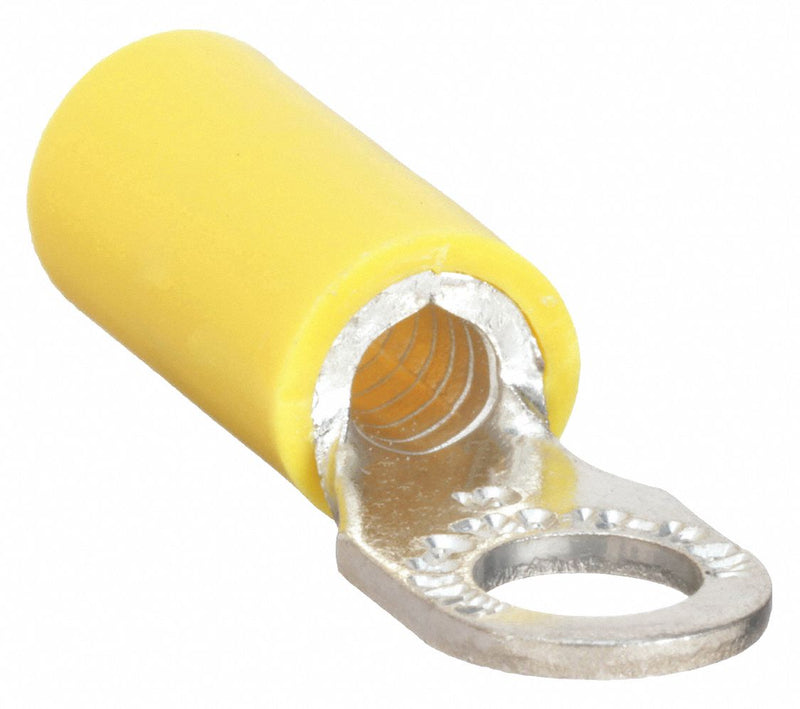

Sta-Kon 10RC-6 Ring Terminal, Yellow, Vinyl Insulation, #6 Stud Size, 12 AWG to 10 AWG Wire Sizes, 600 V

Sta-Kon 10RC-6 Ring Terminal, Yellow, Vinyl Insulation, #6 Stud Size, 12 AWG to 10 AWG Wire Sizes, 600 V

UPC: | Harmonization / Schedule B : 8536.90.4000

Country of Origin: United States | Shipping Weight: 0.27 lbs

$102.57 - $102.57
$102.57
$102.57 - $102.57
$102.57

Ring Terminal, Insulation Color Yellow, Insulation Coverage Partial Coverage, Insulation Material Vinyl, Maximum Operating Temperature 221 Degrees F, Maximum Voltage 600 V, Minimum Wire Size 12 AWG, Maximum Wire Size 10 AWG, Termination Style Crimp, Tongue Width 0.31 in, Contact Finish Tin, Contact Material Copper, Standards CSA Certified, UL Listed E9809, Barrel Length 0.63 in, Barrel Style Serrated Barrel, Compatible with Product Type Copper Conductors, Hole Spacing 0.27 in

Maximum Wire Size 10 AWG
Minimum Wire Size 12 AWG
Stud Size #6
Tongue Width - Wire Connector 0.31 in
Overall Length 1.06 in
Tongue Length 0.43 in
Tongue Width 0.31 in
Barrel Length 0.63 in
Tongue Thickness 0.04 in
Wire Rope Length 1.06 in
Length 1.06 in
Terminal Shape Standard Ring Tongue
Termination Style Crimp Termination Only
Insulation Color Yellow
Insulation Coverage Partial Coverage
Insulation Type Vinyl
Contact Material Copper
Maximum Voltage 600 V
Minimum Operating Temperature 221 Degrees F
Maximum Operating Temperature 221 Degrees F
Standards CSA Certified, UL Listed E9809
Connection Material Copper
Seam Brazed
Terminal Connection Crimp
Connection Type Crimp
Terminal Type Standard
Max. Temp. 221 Degrees F
Wire Range 12 to 10 AWG
Features These terminals are self-insulated with a PVC insulation sleeve of extra length to give protection and relieve bending stress at wires flex point.; Brazed seam barrel is serrated to obtain high pull-out value.; Application Tools: WT145C, WT2000, WT112M, ERG4001; Alternate Package Qty: RC337
Insulation Material Vinyl
Compatible with Product Type Copper Conductors
Barrel Style Brazed Serrated
Contact Finish Tin
Seam Style Brazed
Special Features Protection and Relieve Bending Stress At Wires Flex Point
Hole Spacing 0.27 in
Insulation Dia 0.21 in
Surface protection Tinned
Country of Origin United States
