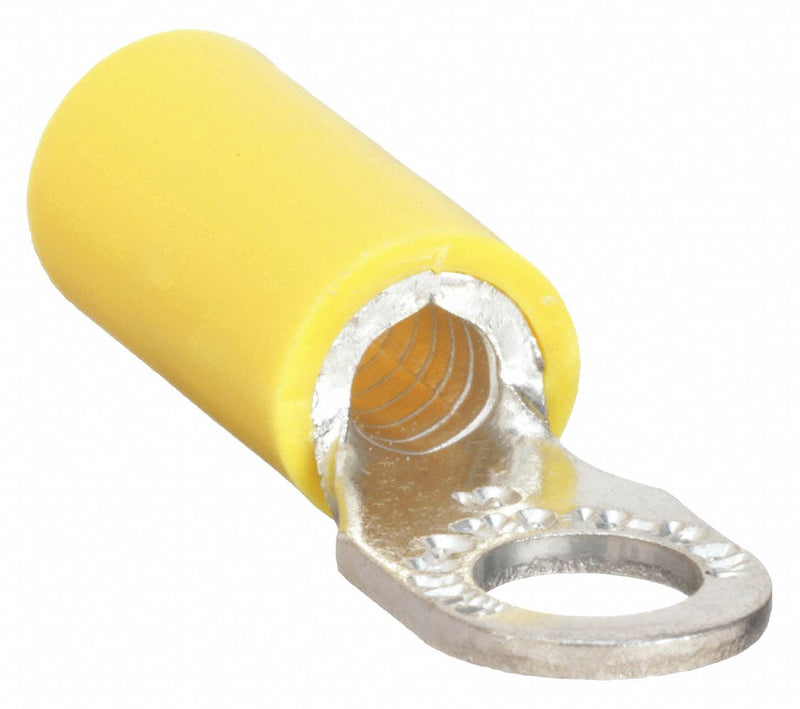

Sta-Kon 10RC-10 Ring Terminal, Yellow, Vinyl Insulation, #10 Stud Size, 12 AWG to 10 AWG Wire Sizes, 600 V

Sta-Kon 10RC-10 Ring Terminal, Yellow, Vinyl Insulation, #10 Stud Size, 12 AWG to 10 AWG Wire Sizes, 600 V

UPC: 786210800424 | Harmonization / Schedule B : 3919.90.5060

Country of Origin: United States | Shipping Weight: 0.27 lbs

$107.92 - $107.92
$107.92
$107.92 - $107.92
$107.92

Ring Terminal, Insulation Color Yellow, Insulation Coverage Partial Coverage, Insulation Material Vinyl, Maximum Temperature 221 Degrees F, Maximum Voltage 600 V, Minimum Wire Size 12 AWG, Maximum Wire Size 10 AWG, Termination Style Crimp, Tongue Width 0.31 in, Contact Finish Tin, Contact Material Copper, Standards CSA Certified, UL Listed E9809, Barrel Length 0.63 in, Barrel Style Brazed Serrated, Compatible with Product Type Copper Conductors, Hole Spacing 0.27 in

Terminal Shape Standard Ring Tongue
Termination Style Crimp Termination Only
Insulation Color Yellow
Insulation Coverage Partial Coverage
Insulation Type Vinyl
Contact Material Copper
Maximum Voltage 600 V
Minimum Operating Temperature 221 Degrees F
Maximum Operating Temperature 221 Degrees F
Standards CSA Certified, UL Listed E9809
Seam Brazed
Max. Temp. 221 Degrees F
Terminal Type Standard
Connection Type Crimp
Terminal Connection Crimp
Connection Material Copper
Wire Range 12 to 10 AWG
Features These terminals are self-insulated with a PVC insulation sleeve of extra length to give protection and relieve bending stress at wires flex point.; Brazed seam barrel is serrated to obtain high pull-out value.; Application Tools: WT145C, WT2000, WT112M, ERG4001; Alternate Package Qty: RC367
Barrel Style Brazed Serrated
Seam Style Brazed
Insulation Material Vinyl
Hole Spacing 0.27 in
Compatible with Product Type Copper Conductors
Contact Finish Tin
Special Features Protection and Relieve Bending Stress At Wires Flex Point
Insulation Dia 0.21 in
Surface protection Tinned
Country of Origin United States
