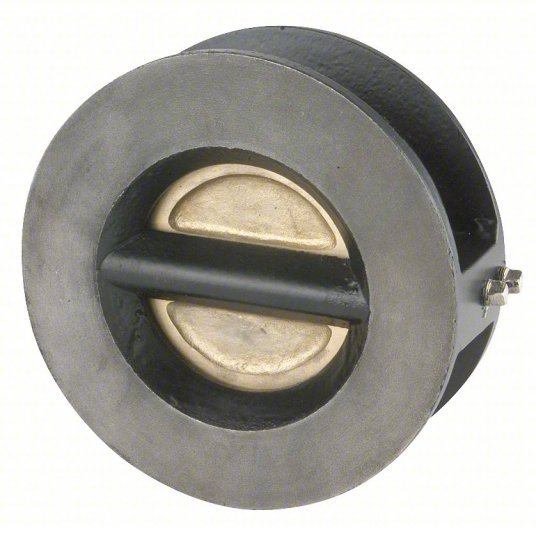

SSI 0600-125WTIBB-T 6" Wafer Flange Cast Iron Double Disc Check Valve
UPC: 818273361540 | Harmonization (Schedule B): 8481.30.2010
SKU KV1RXK3
Original price
$331.49
-
Original price
$331.49
Original price
$331.49
$331.49
-
$331.49
Current price
$331.49
Check Valve, Flow Design Single, Mechanism and Body Design Inline Double Disc, Body Material - Valves Cast Iron, Pipe or Tube Size 6 in, Connection Type Flange x Flange, Cracking Pressure 0.300 to 1.250 psi, Mounting Orientation Horizontal, Vertical, Seal Material Buna-N, Max. Temp. - Valves 300 Degrees F, Min. Temp. - Valves 60 Degrees F, Max. Water Pressure - Valves 200 psi @ 250 Degrees F, Max. Steam Pressure - Valves 200 psi WSP, Seat Material Buna-N
| Connection Type | Wafer Flanged |
| Connection | 125 Class Wafer Flange |
| Body Material | Cast iron |
| Max. Pressure | 200 psig |
| Min. Temp. - Valves | 60 Degrees F |
| Max. Temp. | 250 Degrees F |
| Max. Steam Pressure - Valves | 200 psi WSP |
| Seat Material | Buna N |
| Connection Type - Check Valves | Flange x Flange |
| Application - Valves | Process Piping |
| Mounting Orientation - Check Valves | Horizontal, Vertical |
| Standards | API 598 and FM Approval |
| Mechanism and Body Design | Inline Double Disc |
| Seal Material | Buna N |
| Sub-Category | Iron |
| Spring Material - Check Valves | Stainless Steel |
| Seal Material - Check Valves | Buna-N |
| Item | Double Disc Check Valve |
| Flow Design | Single |
| Body Material - Valves | Cast Iron |
| Full Flow - Valves | Yes |
| Material of Construction | cast iron |
| Max. Temp. - Valves | 300 Degrees F |
| Seat Material - Check Valves | Buna-N |
| Flow - Valves | 3,500 gpm |
| Item - Check Valves | Check Valve |
| Max. Water Pressure - Valves | 200 psi @ 250 Degrees F |
| Cracking Pressure - Check Valves | 0.300 to 1.250 psi |
| Cracking Pressure | 0.300 to 1.250 psi |
| Spring Material | Stainless Steel |
| Mounting Orientation | Horizontal, Vertical |
| Seal | Buna N |
