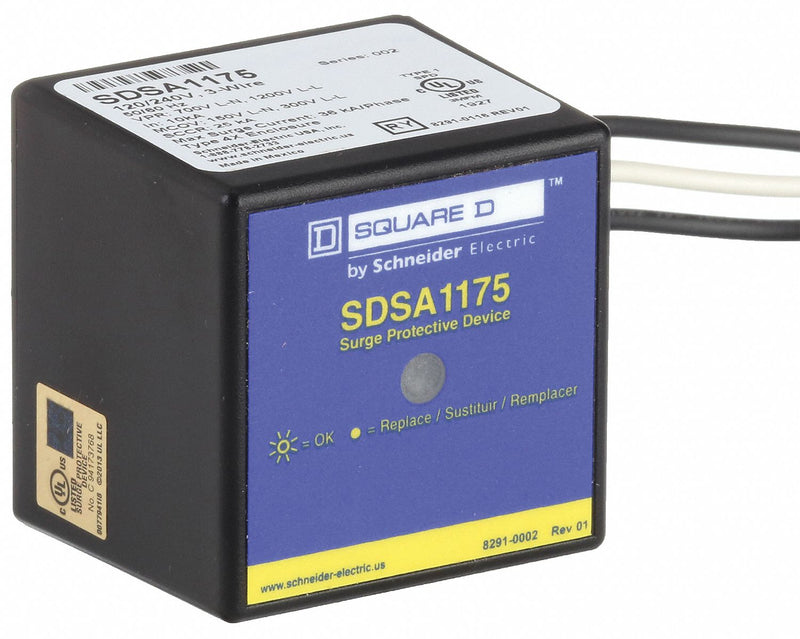

Square D SDSA1175 Surge Protection Device, Single Phase, 120/240V AC, 1200V (L-L)/700V (L-N), 150 V AC, 4X

Square D SDSA1175 Surge Protection Device, Single Phase, 120/240V AC, 1200V (L-L)/700V (L-N), 150 V AC, 4X

UPC: 785901210870 | Harmonization / Schedule B : 8536.30.8000

Country of Origin: Mexico | Shipping Weight: 0.6 lbs

$142.82 - $142.82
$142.82
$142.82 - $142.82
$142.82

Surge Protection Device, Nonmetallic, Black, Amps 36 kA, Depth 2.7 in, Enclosure Material Plastic, Enclosure NEMA Rating 4X, Joules 1,304

Length 2 1/2 in
Depth 2.7 in
Width 2 1/4 in
CAD Available Yes
Mounting Style Chase Nipple
Phase 1
Voltage 120/240V AC
Number of Poles 2
Voltage Protection Rating 1200V (L-L), 700V (L-N)
Number of Wires 3 Wires
Modes of Protection L-L, L-N
Max. Surge Current Per Mode 36kA
Max. Surge Current per Mode 36 kA
Max. Surge Current per Phase 36 kA
Nominal Discharge Current 10 kA
Short Circuit Current Rating 25kA
Modular No
Filtering No
Max. Continuing Operating Voltage 150V AC
Enclosure NEMA Rating NEMA 4X
Enclosure Material Plastic
Wire Gauge 14 AWG
Includes LED Status Indicator
Joules 1,304
Standards CSA C22.2 No 8, NEC 285 Type I, UL 1449:ed. 4 Type I
Modular / Nonmodular Nonmodular
Max. Operating Temp. 149 Degrees F
System Connection Parallel
Amps 36 kA
Color Black
UL SPD Type Type 1
Basic Material Nonmetallic
Status Indicator LED Light
Includes Surge Counter No
Country of Origin Mexico
