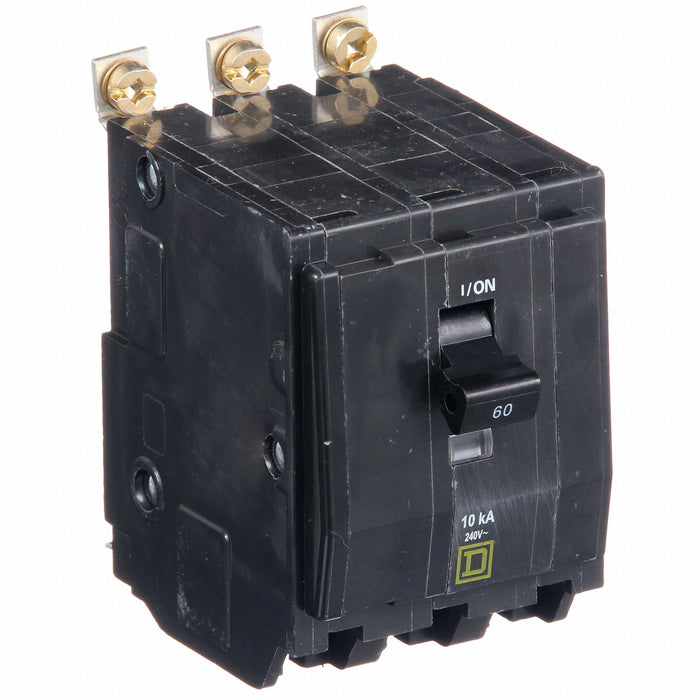

Square D QOB360 Miniature Circuit Breaker

Square D QOB360 Miniature Circuit Breaker, 60 A, 3-Pole, 120/240V AC, Bolt-On

UPC: 785901417187 | Harmonization / Schedule B : 8536.20.0020

Country of Origin: Mexico | Shipping Weight: 1.2 lbs

$459.49 - $459.49
$459.49
$459.49 - $459.49
$459.49

Miniature Circuit Breaker, Amps 60 A, AC Voltage Rating 120/240V AC, Circuit Breaker Type Standard, Number of Poles 3, DC Voltage Rating 48V DC, Circuit Breaker Actuator Paddle, Circuit Breaker Mounting Style Bolt On, Compatible Panelboard/Load Center Series QO, Phase Three, Series QOB, Max. AIR Rating 10kA at 120/240V AC, For Use With Square D NQOD Panelboards, Terminal Connection Lug, Frame Size 100A/QO, Length 3.12 in, Width 2.25 in, Depth 2.91 in, Min. Operating Temp. 77 Degrees F

Series QO
Amps 60A
Number of Poles 3
AC Voltage Rating 120/240V AC
Circuit Breaker Type Standard
Phase 3
Circuit Breaker Actuator Paddle
Circuit Breaker Mounting Style Bolt On
Max. AIR Rating 10kA at 120/240V AC
Terminal Connection Lugs
DC Voltage Rating 48V DC
Standards UL Listed
For Use With NQ Panelboards, QO Load Centers
Features Mercury Free
Interrupt Rating 10 kA at 120/240V AC
Application HACR rated Applications
Min. Operating Temp. 77 Degrees F
Max. Operating Temp. 104 Degrees F
Compatible Panelboard/Load Center Series QO
Voltage 240VAC
CAD Available Yes
Trip Type Thermal Magnetic, Trip Free
Instantaneous Trip Trip Free
Country of Origin Mexico
