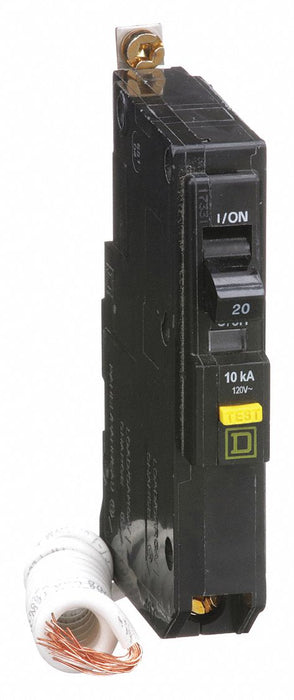

Square D QOB120GFI GFI Breaker

Square D QOB120GFI Miniature Circuit Breaker, QO Series, 20 A, 1 Pole, 120V AC, GFI, 10 kA AIR

UPC: 785901368717 | Harmonization / Schedule B : 8536.20.0020

Country of Origin: Mexico | Shipping Weight: 0.5 lbs

$395.10 - $395.10
$395.10
$395.10 - $395.10
$395.10

Square D QOB120GFI Miniature Circuit Breaker, QO Series, 20 A, 1 Pole, 120V AC, 10 kA AIR at 120V AC, A Curve. Bolt-on mounting, Class A 6 mA Ground Fault Protecting. Designed for use in QO and NQOD panelboards. Suitable for protection of branch circuits supplying receptacles, lighting and small appliances against ground faults. Trip indicator and push-to-test feature. UL Listed.

Series QO
Amps 20 A
Number of Poles 1
AC Voltage Rating 120V AC
Circuit Breaker Type Ground Fault Protecting Class A 6 mA
Phase 1
Circuit Breaker Actuator Toggle
Circuit Breaker Mounting Style Bolt On
Max. AIR Rating 10kA at 120V AC
Trip Curve A Curve
For Use With QO and NQOD Panelboards
Terminal Connection Lug
Standards UL Listed, CSA Certified, HACR Rated
Features Push-to-Test, Trip Indicator
Country of Origin Mexico
