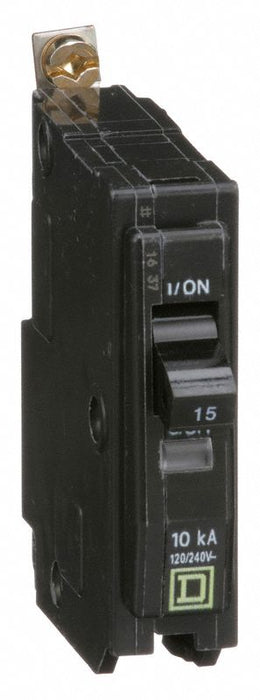

Square D QOB115 Miniature Circuit Breaker

Square D QOB115 Miniature Circuit Breaker, 15 A, 1-Pole, 120/240V AC, Bolt-On

UPC: 785901416708 | Harmonization / Schedule B : 8536.20.0020

Country of Origin: United States | Shipping Weight: 0.28 lbs

$61.01 - $61.01
$61.01
$61.01 - $61.01
$61.01

Miniature Circuit Breaker, Amps 15 A, AC Voltage Rating 120/240V AC, Circuit Breaker Type Standard, Number of Poles 1, DC Voltage Rating 48V DC, Circuit Breaker Actuator Paddle, Circuit Breaker Mounting Style Bolt On, Compatible Panelboard/Load Center Series QO, Phase Single, Series QOB, Max. AIR Rating 10kA at 120/240V AC, For Use With Square D NQOD Panelboards, Terminal Connection Pressure Plate, Frame Size 100A/QO, Length 3 in, Width 0.75 in, Depth 2.91 in, Min. Operating Temp. 77 Degrees F

Series QO
Amps 15A
Number of Poles 1
AC Voltage Rating 120/240V AC
Circuit Breaker Type Standard
Phase 1
Circuit Breaker Actuator Paddle
Circuit Breaker Mounting Style Bolt On
Max. AIR Rating 10kA at 120/240V AC
Terminal Connection Pressure Plate
DC Voltage Rating 48V DC
For Use With NQ Panelboards, QO Load Center Accessory
Standards UL Listed
Interrupt Rating 10 kA at 120/240V AC
Features Mercury Free
Application HACR and Switching Duty rated Applications
Min. Operating Temp. 77 Degrees F
Max. Operating Temp. 104 Degrees F
Compatible Panelboard/Load Center Series QO
Voltage 120/240 VAC
CAD Available Yes
Instantaneous Trip Trip Free
Trip Type Thermal Magnetic, Trip Free
Country of Origin United States
