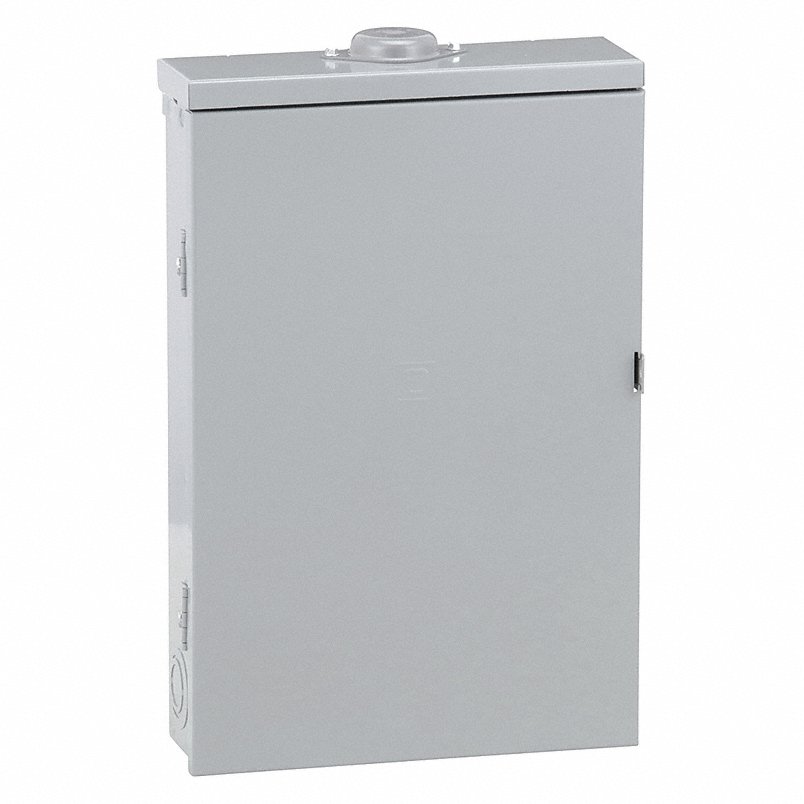

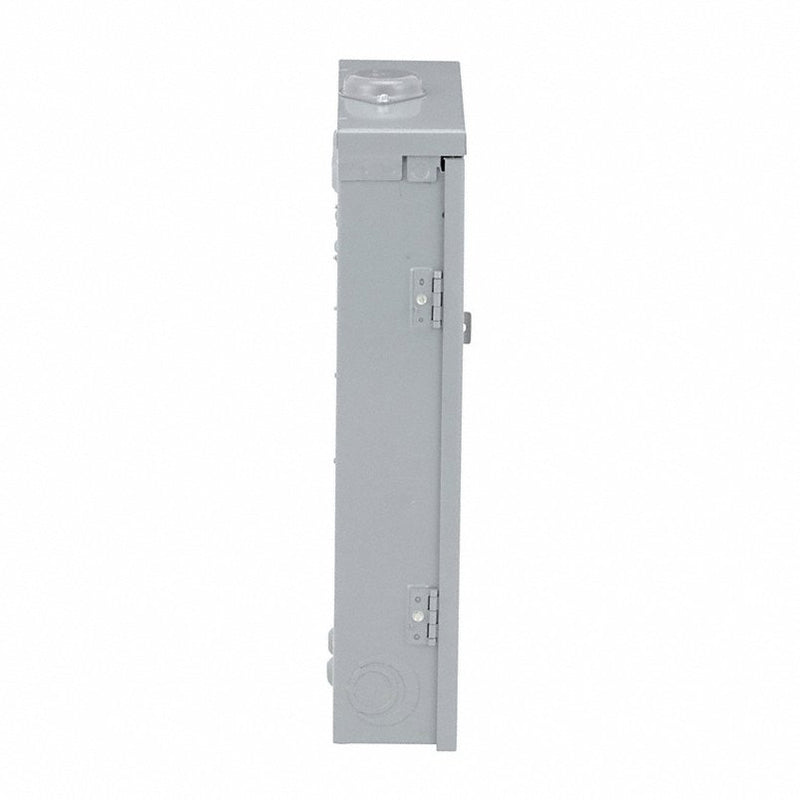

Square D QO320L125GRB Load Center, 20 Spaces, 125 A Amps, 208Y/120/240V AC, QO Circuit Breaker Type
UPC: 994140452204 | Harmonization (Schedule B): 8537.10.9050
SKU KV1D406
Original price
$794.10
-
Original price
$794.10
Original price
$794.10
$794.10
-
$794.10
Current price
$794.10
Load Center, Number of Spaces 20, Amps 125 A, Voltage 208Y/120/240V AC, Circuit Breaker Type QO, Included Enclosure Cover Surface Cover, Main Circuit Breaker or Main Lug Main Lug, Max. No. of Tandem Breakers 0, Phase 3, Series QO, Height 22.5 in, Width 14.77 in, Depth 4 1/2 in, For Use With Square D QO Circuit Breakers, Bus Material Tin Plated Copper, Short Circuit Current Rating 65kA, Enclosure NEMA Rating 3R, Cover Attachment Style Side Hinge, Cover Closure Method Latch
| BRAND | SQUARE D |
|---|---|
| MFG PART NUMBER | QO320L125GRB |
| LEAD TIME | 30 |
| UNSPSC | 39121101 |
| AMPS | 125 A |
| BUS MATERIAL | Tin Plated Copper |
| CIRCUIT BREAKER TYPE | QO |
| COVER ATTACHMENT STYLE | Side Hinge |
| COVER CLOSURE METHOD | Latch |
| DEPTH | 4 1/2 in |
| ENCLOSURE MATERIAL | Galvanized Steel |
| ENCLOSURE NEMA RATING | 3R |
| ENCLOSURE SURFACE FINISH | Enamel |
| FEED LOCATION | Top/Bottom |
| FOR USE WITH | Square D QO Circuit Breakers |
| INCLUDED ENCLOSURE COVER | Surface Cover |
| ITEM | Load Center |
| LOCATION | Outdoor |
| MAIN CIRCUIT BREAKER OR MAIN LUG | Main Lug |
| MAX. NO. OF TANDEM BREAKERS | 0 |
| MAX. OPERATING TEMP. | 104 Degrees F |
| MIN. OPERATING TEMP. | 23 Degrees F |
| NUMBER OF SPACES | 20 |
| PHASE | 3 |
| RECOMMENDED GROUND BAR KIT | Included |
| RECOMMENDED SURFACE COVER | Included |
| SERIES | QO |
| SHORT CIRCUIT CURRENT RATING | 65kA |
| SPECIAL FEATURES | Mercury Free |
| STANDARDS | RoHS Compliant, UL Listed |
| VOLTAGE | 208Y/120/240V AC |
| WIDTH | 14.77 in |
| REFERENCE PART NUMBERS | 1D406,94048023,2204360 |
| HEIGHT | 22.5 in |
| WIDTH | 14.77 in |
| COLOR | Gray |
