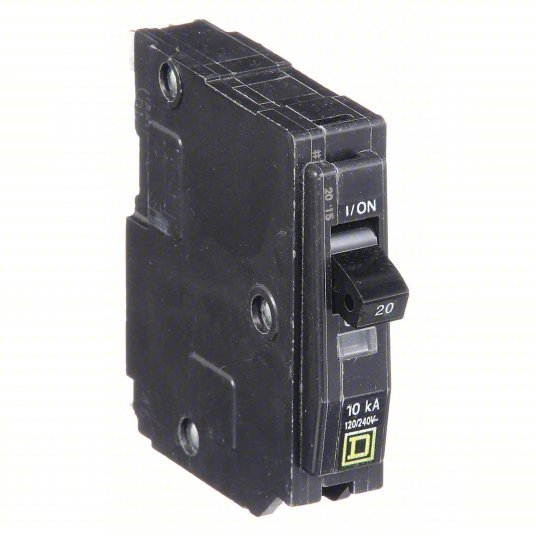

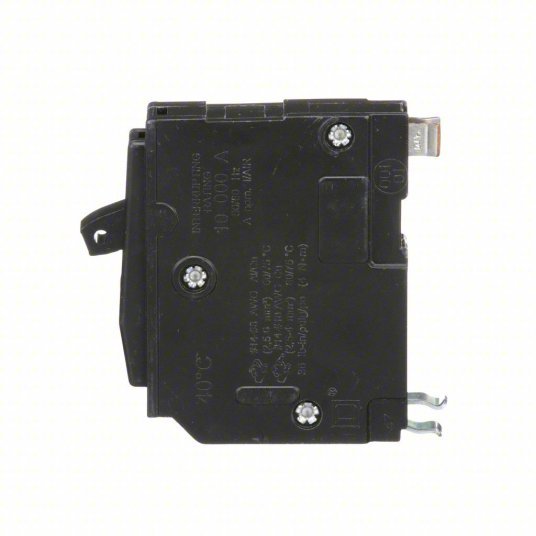

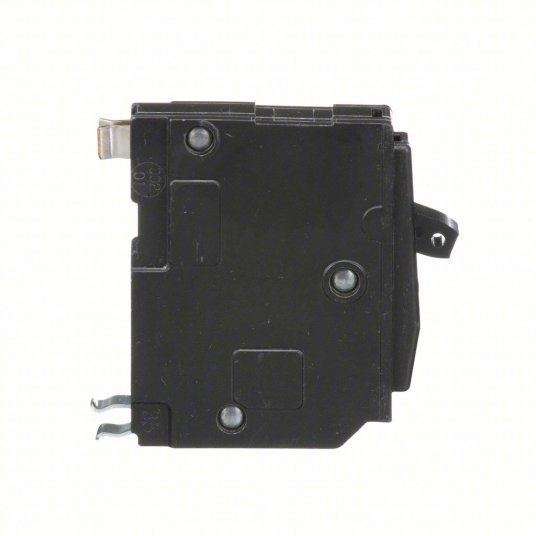

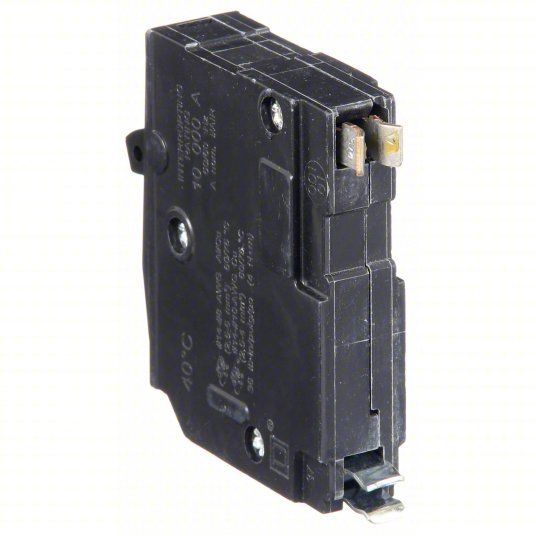

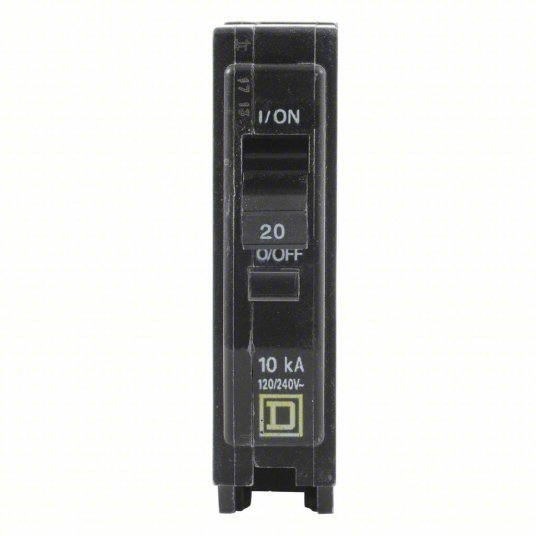

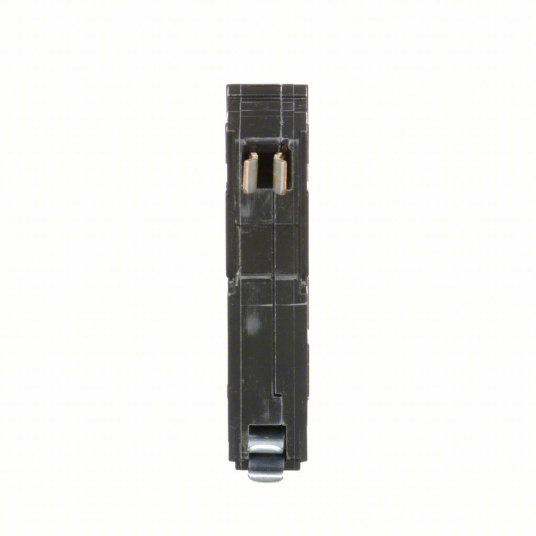

Square D QO120 Miniature Circuit Breaker 20 A, 120/240V AC, Single Phase, 10kA at 120/240V AC, QO, Std

Miniature Circuit Breaker, Amps 20 A, AC Voltage Rating 120/240V AC, Circuit Breaker Type Standard, Number of Poles 1, DC Voltage Rating 48V DC, Circuit Breaker Actuator Paddle, Circuit Breaker Mounting Style Plug In, Compatible Panelboard/Load Center Series QO, Phase Single, Series QO, Max. AIR Rating 10kA at 120/240V AC, For Use With QO Load Centers and NQ Panelboards, Terminal Connection Pressure plate, Frame Size 100A/QO, Length 3 in, Width 0.75 in, Depth 2.91 in

Series	QO
Amps	20A
Number of Poles	1
AC Voltage Rating	120/240V AC
Circuit Breaker Type	Standard
Phase	1
Circuit Breaker Actuator	Paddle
Circuit Breaker Mounting Style	Plug In
Max. AIR Rating	10kA at 120/240V AC
Terminal Connection	Pressure Plate
DC Voltage Rating	48V DC
For Use With	QO Load Centers and NQ Panelboards
Standards	HACR, Switch Duty, UL Listed
Features	Mercury Free
Interrupt Rating	10 kA at 120/240V AC
Application	HACR and Switching Duty rated Applications
Compatible Panelboard/Load Center Series	QO
Max. Operating Temp.	104 Degrees F
Min. Operating Temp.	77 Degrees F
Voltage	120/240V AC
