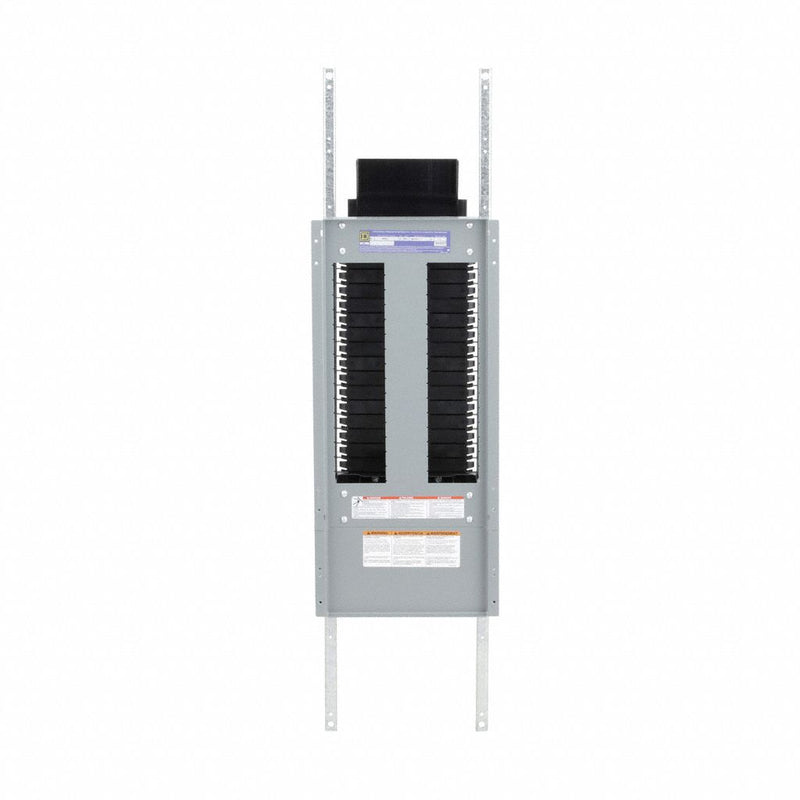

Square D NF430L4 Panelboard Interior, 30 Spaces, 400 A Amps, Aluminum, EDB/EDG/EDJ, 46 in Ht, 10 7/16 in Wd

Square D NF430L4 Panelboard Interior, 30 Spaces, 400 A Amps, Aluminum, EDB/EDG/EDJ, 46 in Ht, 10 7/16 in Wd

UPC: 785901871491 | Harmonization / Schedule B : 8537.10.9050

Country of Origin: Korea, Republic of | Shipping Weight: 12.5 lbs

$3,103.79 - $3,103.79
$3,103.79
$3,103.79 - $3,103.79
$3,103.79

Panelboard Interior, Convertible, Main Lug, Circuit Breaker Series EDB, EDG, EDJ, Amps 400 A, Short Circuit Current Rating 100000 RMS Symmetrical, Number of Spaces 30, Voltage 277/480YV AC, Phase Three, Bus Material Aluminum, Recommended Enclosure 12N640 for Main Breaker, 1D700 for Main Lug, Circuit Breaker Type Bolt-On, For Use With NF Circuit Breakers, Height 46 in, Depth 5 3/4 in, Width 10 7/16 in, Main Circuit Breaker Adapter Kit 22P071

Main Circuit Breaker or Main Lug Convertible Main Lug
Number of Spaces 30
Amps 400 A
Voltage 277/480V
Phase 3
Short Circuit Current Rating 100000 RMS Symmetrical
Series EDB, EDG, EDJ
Recommended Surface Cover G3941752 for Main Breaker, G0776395 for Main Lug
Recommended Flush Cover G6665967 for Main Breaker, G2241382 for Main Lug
Bus Material Aluminum
Main Circuit Breaker Adapter Kit 22P071
Recommended Enclosure 12N640 for Main Breaker, 1D700 for Main Lug
Standards CSA C22.2, UL 67
Circuit Breaker Type Bolt-On
For Use With NF Circuit Breakers
Circuit Breaker Series EDB, EDG, EDJ
Features Mercury Free
Rated Interrupted Current 65 kA
Connections - Terminals Lug line AWG 1/0 to 750 kcmil aluminium; Lug neutral AWG 1/0 to 750 kcmil aluminium
Wiring Configuration 4-wire
Tightening Torque 274.99 to 300.04 lbf.in (31.07 to 33.90 N.m) 0.08 to 0.59 in² (53.48 to 380 mm²) (AWG 1/0 to 750 kcmil); 274.99 to 300.04 lbf.in (31.07 to 33.90 N.m) 0.08 to 0.27 in² (53.48 to 177.3 mm²) (AWG 1/0 to 350 kcmil); 549.98 lbf.in (62.14 N.m) 0.08 to 0.59 in² (53.48 to 380 mm²) (AWG 1/0 to 750 kcmil); 549.98 lbf.in (62.14 N.m) 0.08 to 0.24 in² (53.48 to 152 mm²) (AWG 1/0 to 300 kcmil); 375.01 lbf.in (42.37 N.m) 0.08 to 0.59 in² (53.48 to 380 mm²) (AWG 1/0 to 750 kcmil); 375.01 lbf.in (42.37 N.m) 0.08 to 0.24 in² (53.48 to 152 mm²) (AWG 1/0 to 300 kcmil)
Country of Origin Korea, Republic of
