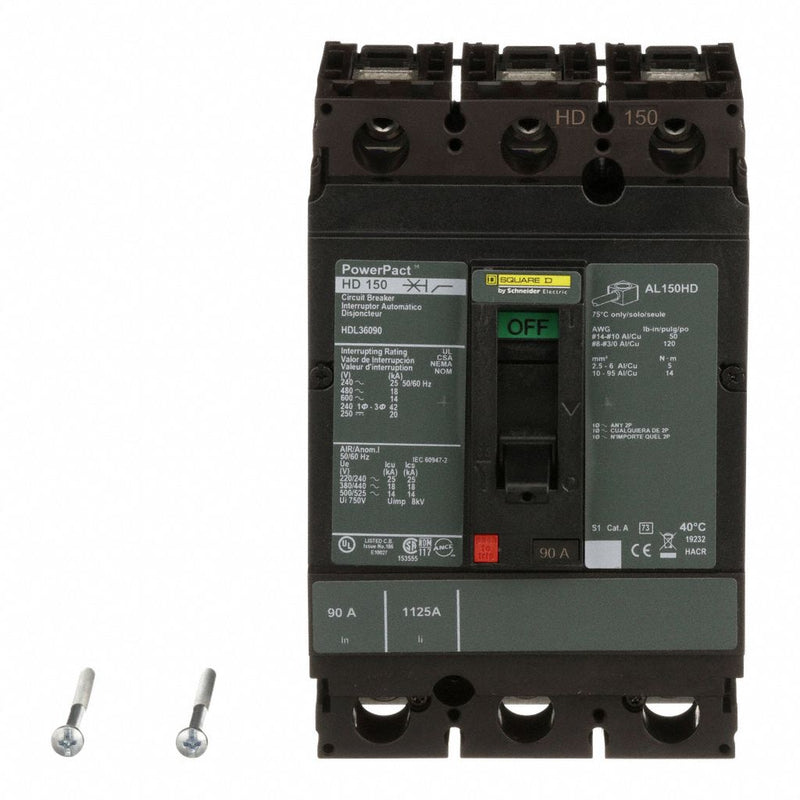

Square D HDL36090 Molded Case Circuit Breaker, 90 A, 3 Pole, 600V AC, 25kA at 240V AC

Square D HDL36090 Molded Case Circuit Breaker, 90 A, 3 Pole, 600V AC, 25kA at 240V AC

UPC: 785901955917 | Harmonization / Schedule B : 8536.20.0020

Country of Origin: South Korea | Shipping Weight: 4.05 lbs

$1,599.11 - $1,599.11
$1,599.11
$1,599.11 - $1,599.11
$1,599.11

Molded Case Circuit Breaker, 90 A Amps, AC Voltage Rating 600V AC, Max. AIR Rating 25kA at 240V AC, For Use With -, Series HD, High Amp Trip Setting 1,450 A, Low Amp Trip Setting 800 A, Circuit Breaker Type Standard, Number of Poles 3, DC Voltage Rating 250V DC, Terminal Connection Line/Load Lug, Trip Type Thermal Magnetic, Phase Three, Instantaneous Trip Fixed, Phase Connection ABC, Frame Size 150A/HD, Circuit Breaker Mounting Style Free Standing, Height 6.4 in, Width 4.12 in, Depth 4.36 in

Series POWERPACT H
Amps 90A
Number of Poles 3
AC Voltage Rating 600V AC
Circuit Breaker Type Standard
Phase 3
Circuit Breaker Actuator Toggle
Circuit Breaker Mounting Style Surface Mount/DIN Rail
Max. AIR Rating 25kA at 240V AC
Trip Type Thermal Magnetic
Instantaneous Trip Fixed
Terminal Connection Lugs
Phase Connection ABC
DC Voltage Rating 250V DC
Standards CE, CSA, IEC, UL listed
Low Amp Trip Setting 800 A
High Amp Trip Setting 1,450 A
Color Black
Interrupt Rating 25 kA at 220/240V AC, 18 kA at 380/440/415/480V AC, 14 kA at 500/525/600V AC, 20 kA at 250/500V DC
Features Mercury Free; PVC Free
Application HACR rated Applications; Distribution
Max. Operating Temp. 104 Degrees F
Rated Service Breaking Capacity 25 kA 220/240 V AC 50/60 Hz IEC 60947-2; 18 kA 380/440/415 V AC 50/60 Hz IEC 60947-2; 14 kA 500/525 V AC 50/60 Hz IEC 60947-2; 20 kA 250 V DC IEC 60947-2; 20 kA 500 V DC IEC 60947-2
AWG Gauge AWG 14 to AWG 3/0 aluminium/copper terminal
Device Application Distribution
Rated Operational Voltage 690 V AC 50/60 Hz IEC 60947-3
Product Certifications UL; CSA; NOM
Breaking Capacity 25 kA 240 V AC 50/60 Hz UL 489; 18 kA 480 V AC 50/60 Hz; 14 kA 600 V AC 50/60 Hz; 20 kA 250 V DC
Breaking Capacity Code D
Suitability For Isolation Yes IEC 60947-2
Circuit Breaker Application HACR rated
Rated Impulse Withstand Voltage 8 kV IEC 60947-2
Number Of Slots 2 auxiliary switch OF plug-in); 1 alarm switch SD plug-in); 1 overcurrent trip switch SDE plug-in); 1 voltage release MN or MX plug-in)
Operating Altitude Less than 6561.68 ft (2000 m) without derating; 5000 m with derating
Communication Interface Modbus; Ethernet
Quality Labels CE
Ambient Air Temperature For Operation 28 to 158°F (-2 to 70°C)
Tightening Torque 44.25 lbf.in (5 N.m) 0.00 to 0.01 in² (2.5 to 6 mm²) (AWG 14 to AWG 10); 123.91 lbf.in (14 N.m) 0.02 to 0.15 in² (10 to 95 mm²) (AWG 8 to AWG 3/0)
Terminal Identifier AL150HD
Network Frequency 50/60 Hz
Local Signalling Switched off (OFF) 1 trip indicator green)
Pollution Degree 3 IEC 60947-1
IP Degree Of Protection Front cover IP40 IEC 60529
Rated Insulation Voltage 750 V IEC 60947-2
Protected Poles Description 3t
Continuous Current Rating 0.8
Ambient Air Temperature For Storage -58 to 185°F (-50 to 85°C)
Magnetic Tripping Current 1450 A
Country of Origin Korea, Republic of
