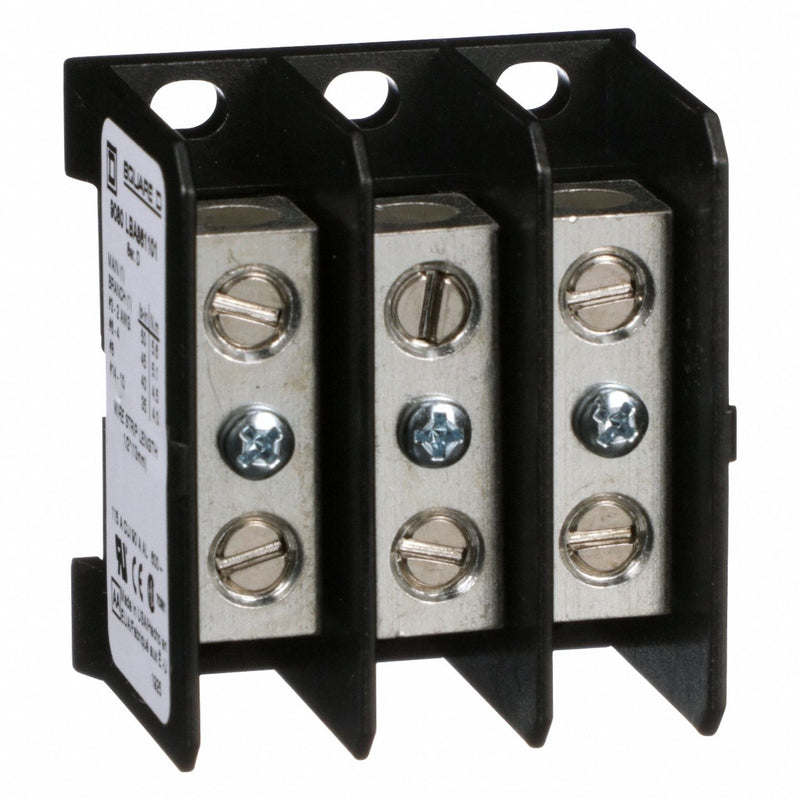

Square D 9080LBA361101 Power Distribution Block, Open, Lug, Lug, 14 AWG – 2 AWG For Line Side Wire Sizes

Square D 9080LBA361101 Power Distribution Block, Open, Lug, Lug, 14 AWG – 2 AWG For Line Side Wire Sizes

UPC: 785901097426 | Harmonization / Schedule B : 8537.10.9090

Country of Origin: South Korea | Shipping Weight: 0.2 lbs

$31.69 - $31.69
$31.69
$31.69 - $31.69
$31.69

Power Distribution Block, For Conductor Material Aluminum, Copper, Line Connections/Pole 1, For Line Copper Wire Size - Minimum 14 AWG, For Line Copper Wire Size - Maximum 2 AWG, Load Connections/Pole 1, For Load Copper Wire Size - Minimum 14 AWG, For Load Copper Wire Size - Maximum 2 AWG, Maximum Current - Copper Conductor 115 A, Maximum Voltage 600 V, Mounting Type Surface, Number of Poles 3, Overall Depth 1.62 in

Length 2.29 in
Width 2.1 in
Depth 1.53 in
For Load Copper Wire Size - Maximum 2 AWG
Overall Width 2.12 in
For Load Aluminum Wire Size - Minimum 14 AWG
For Line Aluminum Wire Size - Maximum 2 AWG
For Line Copper Wire Size - Maximum 2 AWG
Overall Depth 1.62 in
For Load Aluminum Wire Size - Maximum 2 AWG
Overall Length 2.29 in
For Line Copper Wire Size - Minimum 14 AWG
For Line Aluminum Wire Size - Minimum 14 AWG
For Load Copper Wire Size - Minimum 14 AWG
Wire Strip Length Line 0.5 in
Wire Rope Length 2.29 in
Power Distribution Block Design Open
For Conductor Material Aluminum, Copper
Maximum Current - Copper Conductor 115 A
Maximum Current - Aluminum Conductor 90 A
Maximum Voltage 600 V AC/DC
Number of Poles 3
Line Connections/Pole 1
Load Connections/Pole 1
Line Side Connection Type Lug
Load Side Connection Type Lug
Terminal Material Aluminum
Housing Material Thermoplastic
Maximum Operating Temperature 257 Degrees F
Mounting Type Surface Mount
Standards CE Marked, CSA File 70361 Class 6228-1, RoHS Compliant, UL File E60616 Guide XCFR2
Number of Circuits 3
Minimum Operating Temperature -40 Degrees F
Special Features 18 Months Warranty, Surface Mount
Housing Color Black
Short Circuit Current Rating 65 kA
Features Mercury Free
CAD Available Yes
UL 94 Flammability Rating V-0
Secondary Wire Range 14 to 2 AWG
Primary Wire Range 14 to 2 AWG
Country of Origin Korea, Republic of
