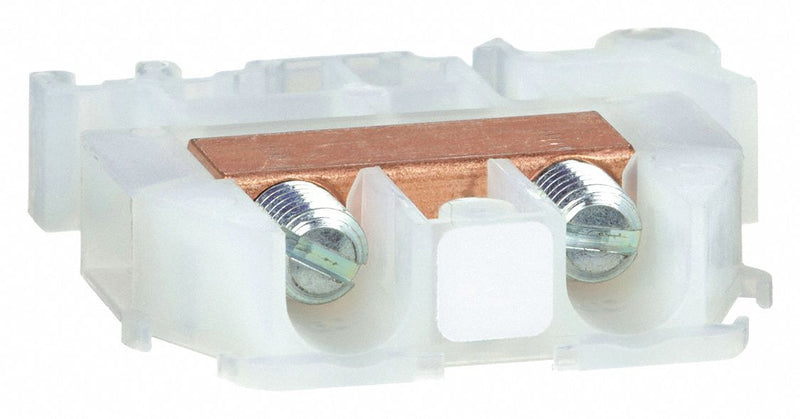

Square D 9080GR6 Terminal Block, DIN Rail Mounting Type, Screw Clamp Wire Termination, 2 Wire Terminals

Square D 9080GR6 Terminal Block, DIN Rail Mounting Type, Screw Clamp Wire Termination, 2 Wire Terminals

UPC: 785901000716 | Harmonization / Schedule B : 8536.90.8585

Country of Origin: South Korea | Shipping Weight: 0.03 lbs

$4.13 - $4.13
$4.13
$4.13 - $4.13
$4.13

Linergy NEMA sectional terminal blocks are for terminating wires in a control panel and are designed to NEMA standards. This terminal block has a box lug connector for use with solid or stranded copper wires from #22 through #8 AWG. Each box lug terminal is approved for use with various wire combinations. Each lug accepts 1 #8 AWG, 1 # 10 AWG, 1 or 3 #12 AWG, 1 or 4 #14 AWG, 1 to 4 #16 AWG, 1 to 5 #18 AWG, 1 to 8 #20 AWG or 1 to 10 #22 AWG wires. The nylon block is molded in the natural color of nylon (off white). This block is UL component recognized and CSA certified for up to 60 ampere and up to 600 VAC or VDC.

For Minimum Wire Size 22 AWG
For Maximum Wire Size 8 AWG
Channel Size 35mm/GH
For Channel Rail Size 35 mm
For Fuse Diameter 3 1/32 in
Overall Length 1.82 in
Overall Width 1.72 in
Overall Depth 0.35 in
Wire Rope Length 1.82 in
Length 1.82 in
MFR # 9080GR6
Zoro # G0590231
UPC # 785901000716
Country of Origin Korea, Republic of
Terminal Block Type Solderless Box Lug
Mounting Type DIN
Connection Type Screw Clamp
Number of Poles 1
Number of Tiers 2
Current 60 A
Maximum Voltage 600 V AC/DC
Circuit Protection Type None
Termination Style Screw
For Conductor Material Copper
For Conductor Type Solid, Stranded
Housing Color Natural
Standards CE, CSA Approved, RoHS Compliant, UL Component Recognized
Block Material Nylon
Temp. Range -40 Degrees to 275 Degrees F
Pieces per Foot 34
Number of Connections 2
Material Nylon: block
Maximum Operating Temperature 257 Degrees F
Includes Adhesive Backed Strips, Cover, End Barrier, End Clamps, Fanning Strip, Marking Strip End Plug, Mounting Track, Sheets of Marked Tabs, Sheets of Marking Tabs, Vinyl Marking Strip
End Barrier Compatibility 5B361
UL 94 Flammability Rating V-2
Torque 20 lb-in
Terminal Material Copper
Minimum Operating Temperature -40 Degrees F
2-Pole Jumper Compatibility 5B366
Housing Material Nylon
6-Pole Jumper Compatibility 5B365
RoHS Compliant Yes
Compatible Manufacturer Model Number 9080 GH21, 9080 GH31, GH10, GH11, GH136, GH200, GH210, GH220, GH236, GH336, GH52, GH60, GH62, GM6B, MH320, MH339, MH379, MHA10
Ambient Air Temperature For Operation -40-257°F
Electrical Connection copper box lugs
Number Of Terminal Blocks 34 per foot
[Ue] Rated Operational Voltage 600 V AC/DC
Localisation On Device standard
Protection Type fingersafe DIN 57470
Electrical Connrection Tightening Torque Lug copper 18 to 20 lbf.in (2.03 to 2.26 N.m) : AWG 22 to AWG 8 copper)
Country of Origin South Korea (subject to change)
