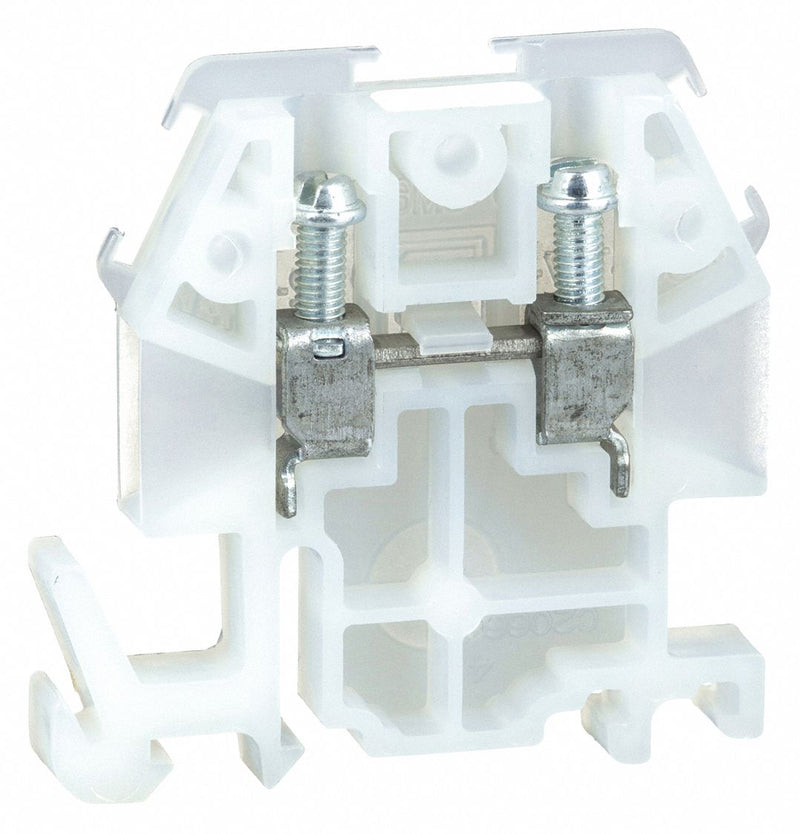

Square D 9080GM6 Terminal Block, DIN Rail Mounting Type, Screw Clamp Wire Termination, 2 Wire Terminals

Square D 9080GM6 Terminal Block, DIN Rail Mounting Type, Screw Clamp Wire Termination, 2 Wire Terminals

UPC: 785901743927 | Harmonization / Schedule B : 8536.90.4000

Country of Origin: South Korea | Shipping Weight: 0.02 lbs

$3.51 - $3.51
$3.51
$3.51 - $3.51
$3.51

Terminal Block, Circuit Protection Type None, Connection Type Screw Clamp, Current 30 A, For Minimum Wire Size 22 AWG, For Maximum Wire Size 10 AWG, Housing Color Natural, Maximum Voltage 600 V, Mounting Type DIN Rail, Number of Poles 1, Number of Tiers 2, For Conductor Material Copper, For Conductor Type Solid, Stranded, For Fuse Diameter 3 1/32 in, Overall Depth 0.24 in, Overall Length 1.82 in, Overall Width 1.72 in, Standards CE, CSA Approved, RoHS Compliant, UL Component Recognized

For Minimum Wire Size 22 AWG
For Maximum Wire Size 10 AWG
Channel Size 35mm/GH
Overall Length 1.82 in
For Channel Rail Size 35 mm
Overall Depth 0.24 in
For Fuse Diameter 3 1/32 in
Overall Width 1.72 in
Wire Rope Length 1.82 in
Length 1.82 in
MFR # 9080GM6
Zoro # G2772104
UPC # 785901743927
Country of Origin Korea, Republic of
Terminal Block Type Solderless Box Lug
Mounting Type DIN
Connection Type Screw Clamp
Number of Poles 1
Number of Tiers 2
Current 30 A
Maximum Voltage 600 V AC/DC
Circuit Protection Type None
Termination Style Screw
For Conductor Material Copper
For Conductor Type Solid, Stranded
Housing Color Natural
Standards CE, CSA Approved, RoHS Compliant, UL Component Recognized
Pieces per Foot 51
Block Material Nylon
Temp. Range -40 Degrees to 275 Degrees F
Number of Connections 2
Maximum Operating Temperature 257 Degrees F
Includes Adhesive Backed Strips, End Barrier, End Clamps, Marking Strip End Plug, Mounting Track, Vinyl Marking Strip
6-Pole Jumper Compatibility 5B367
Housing Material Nylon
Torque 8 lb-in
Minimum Operating Temperature -40 Degrees F
UL 94 Flammability Rating V-2
Terminal Material Zinc Plated Steel
2-Pole Jumper Compatibility 5B368
Compatible Manufacturer Model Number 9080 GH230, 9080 GH31, GH10, GH11, GH136, GH220, GH236, GH336, GH60, GM6B, MH320, MH339, MH379, MHA10
End Barrier Compatibility 5B361
RoHS Compliant Yes
Electrical Connection zinc plated steel box lugs
Localisation On Device standard
Protection Type fingersafe DIN 57470
Number Of Terminal Blocks 51 per foot
[Ue] Rated Operational Voltage 600 V AC/DC
Ambient Air Temperature For Operation -40-257°F
Country of Origin South Korea (subject to change)
