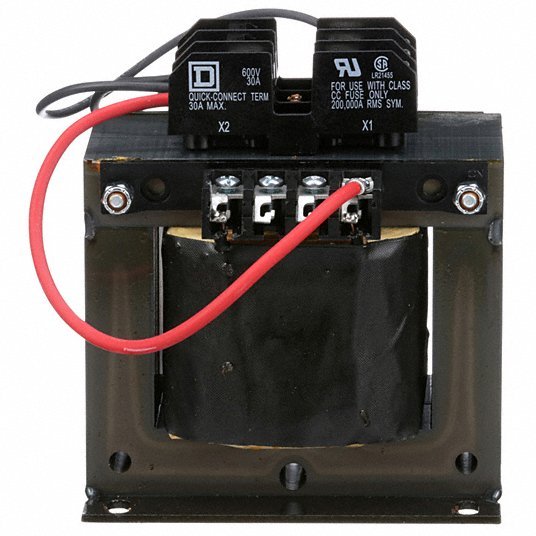

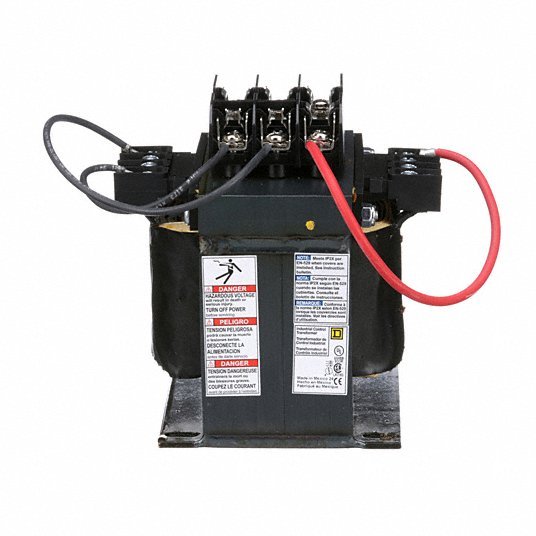

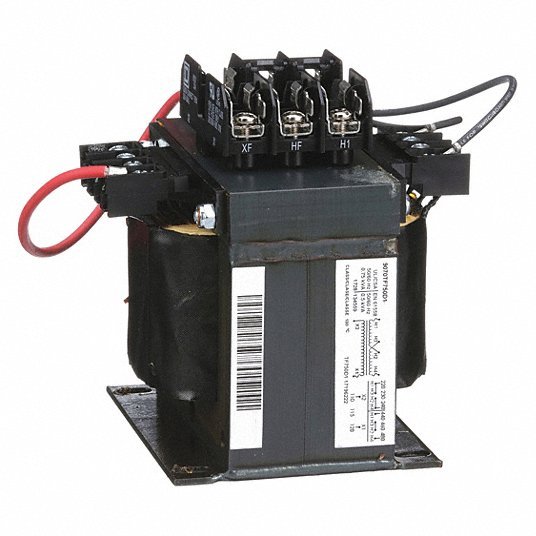

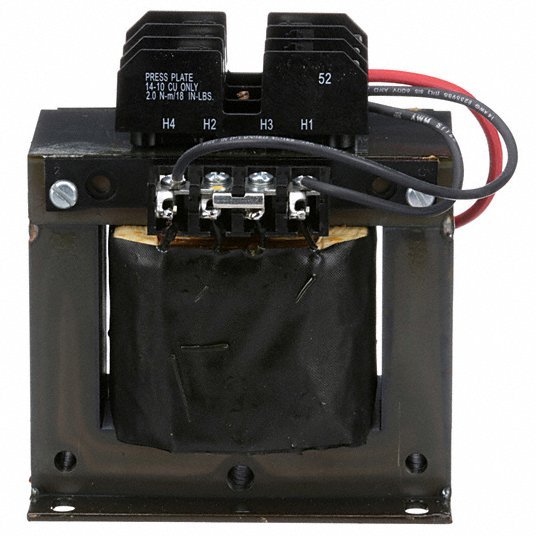

Square D 9070TF750D1 Control Transformer, 750VA, 5.73 In. H
UPC: 785901904908 | Harmonization (Schedule B): 8504.31.4065
SKU KV92358464
Original price
$717.99
-
Original price
$717.99
Original price
$717.99
$717.99
-
$717.99
Current price
$717.99
Control Transformer, Input Voltage - Transformer 240V AC, 480V AC, Output Voltage - Transformer 120V AC, VA Rating - Transformer 750 VA, Protective Device Primary Fuse, Secondary Fuse, Enclosure Style - Transformer Open, Mounting - Transformer Foot, Phase - Electrical 1, Hz - Electrical 50 Hz, 60 Hz, Temp. Rise 115 Degrees C, Enclosure Finish Varnish Vacuum Impregnation 4R928,92358464,G3238602
| Item - Transformer | Control Transformer |
| Input Voltage - Transformer | 240V AC, 480V AC |
| Output Voltage - Transformer | 120V AC |
| VA Rating - Transformer | 750 VA |
| Protective Device | Primary Fuse, Secondary Fuse |
| Enclosure Style - Transformer | Open |
| Mounting - Transformer | Foot |
| Phase - Electrical | 1 |
| Hz - Electrical | 50 Hz, 60 Hz |
| Includes | Top Mounted Fuse Block |
| VA Rating | 750VA |
| Input Voltage | 240/480VAC |
| Item | Control Transformer |
| Mounting | Panel |
| Fused | Yes |
| Enclosure Finish | Varnish Vacuum Impregnation |
| Temp. Rise | 115 Degrees C |
| Output Voltage | 120VAC |
| Standards | Standard 508 and NEC 450 |
| Hz | 50/60 |
| Transformer Type | Wire-Wound |
| Phase | 1 |
| Green Environmental Attribute | Mercury Free; Pvc Free |
| Insulation Max. Temp. | 180°C |
| Primary Connection | Screw clamp terminals |
| Secondary Connection | Screw clamp terminals |
| Winding Material - Transformer | Copper |
| Enclosure Type | Open Device (Not Rated) |
| Package Quantity | 1 |
