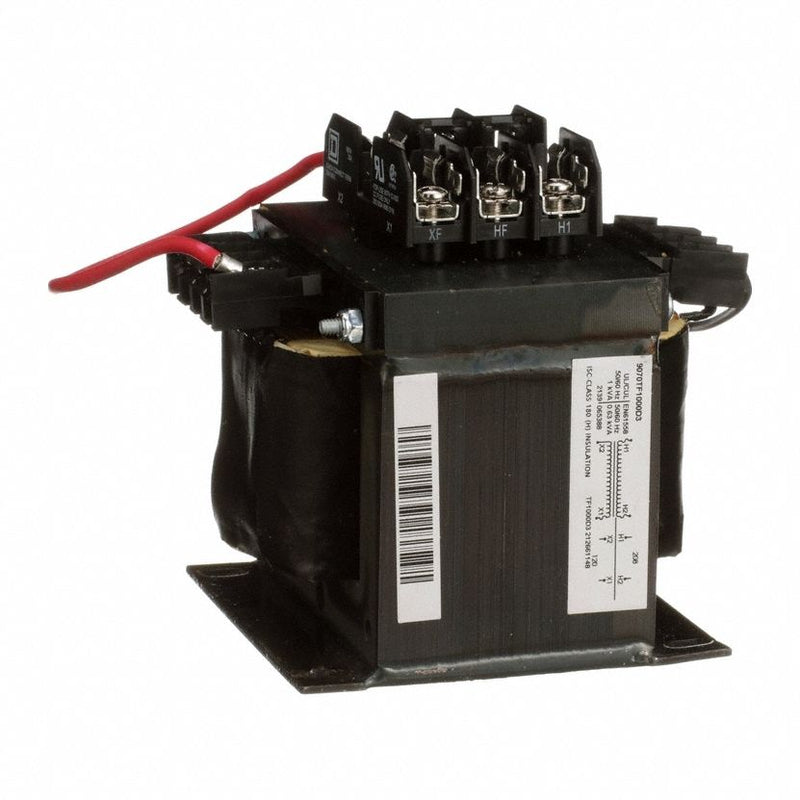

Square D 9070TF1000D3 Control Transformer, 208V AC, 120V AC, Foot, 1 kVA, Top Mounted Fuse Block, Single Phase

Square D 9070TF1000D3 Control Transformer, 208V AC, 120V AC, Foot, 1 kVA, Top Mounted Fuse Block, Single Phase

UPC: 785901314042 | Harmonization / Schedule B : 8504.31.6000

Country of Origin: Korea, Republic of | Shipping Weight: 21.6 lbs

$1,612.82 - $1,612.82
$1,612.82
$1,612.82 - $1,612.82
$1,612.82

Control Transformer, Input Voltage - Transformer 208V AC, Output Voltage - Transformer 120V AC, VA Rating - Transformer 1 kVA, Protective Device Primary and Secondary Fuse, Enclosure Style - Transformer Open, Mounting - Transformer Foot, Phase - Electrical 1, Hz - Electrical 50 Hz, 60 Hz, Temp. Rise 115 Degrees C, Enclosure Finish Epoxy Resin Varnish

Overall Height 5.8 in
Overall Width 5.25 in
Overall Depth 6.3 in
Manufacturers Warranty Length 18 mo
For Fuse Diameter 7/16 in
For Fuse Length 1 1/2 in
Input Voltage - Transformer 208V AC
Output Voltage 120V AC
Power Rating 1 kVA
Phase Single
Mounting - Transformer Foot
Hz - Electrical 50/60 Hz
NEMA Enclosure Rating Not Rated
Temperature Rise 115 Degrees C
Enclosure Style - Transformer Open
Fused Yes
Includes Top Mounted Fuse Block
Protective Device Primary and Secondary Fuse
Enclosure Finish Epoxy Resin Varnish
Standards CSA File LR37055 Guide 184-N-90, REACH, RoHS, UL Listed File E61239
Green Environmental Attribute Mercury Free; Pvc Free
Enclosure Type Open
Primary Connection Screw clamp terminals
Winding Material - Transformer Copper
Insulation Max. Temp. 180 °C
Secondary Connection Screw clamp terminals
For Fuse Class CC
Enclosure Style Open
Frequency 50/60 Hz
Input Voltage 208V AC
Country of Origin Korea, Republic of
