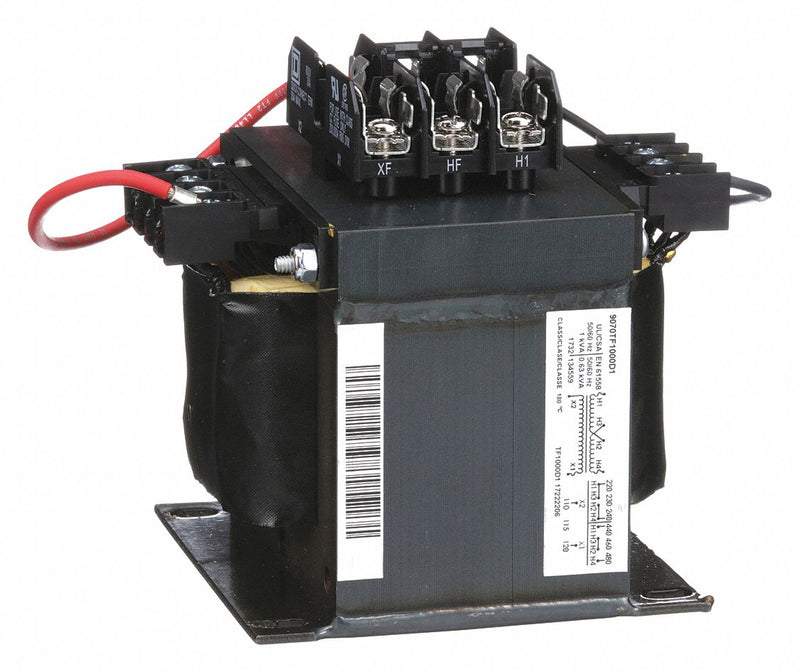

Square D 9070TF1000D1 Control Transformer, 220V AC/230V AC/240V AC/440V AC/460V AC/480V AC, Foot, 1 kVA

Square D 9070TF1000D1 Control Transformer, 220V AC/230V AC/240V AC/440V AC/460V AC/480V AC, Foot, 1 kVA

UPC: 785901904922 | Harmonization / Schedule B : 8504.31.4065

Country of Origin: Korea, Republic of | Shipping Weight: 21.5 lbs

$1,210.13 - $1,210.13
$1,210.13
$1,210.13 - $1,210.13
$1,210.13

Control Transformer, Input Voltage - Transformer 240V AC, 480V AC, Output Voltage - Transformer 120V AC, VA Rating - Transformer 1 kVA, Protective Device Primary and Secondary Fuse, Enclosure Style - Transformer Open, Mounting - Transformer Foot, Phase - Electrical 1, Hz - Electrical 50 Hz, 60 Hz, Temp. Rise 115 Degrees C, Enclosure Finish Epoxy Resin Varnish

Overall Height 5.8 in
Overall Width 5.25 in
Overall Depth 6.3 in
Manufacturers Warranty Length 18 mo
For Fuse Diameter 7/16 in
For Fuse Length 1 1/2 in
CAD Available Yes
Input Voltage - Transformer 240/480V AC
Output Voltage 110V AC, 115V AC, 120V AC
Power Rating 1 kVA
Phase Single
Mounting - Transformer Foot
Hz - Electrical 50/60 Hz
NEMA Enclosure Rating Not Rated
Temperature Rise 115 Degrees C
Enclosure Finish Epoxy Resin Varnish
Includes Top Mounted Fuse Block
Enclosure Style - Transformer Open
Fused Yes
Standards CSA File LR37055 Guide 184-N-90, REACH, RoHS, UL Listed File E61239
Protective Device Primary and Secondary Fuse
Green Environmental Attribute Mercury Free; Pvc Free
Winding Material - Transformer Copper
Secondary Connection Screw clamp terminals
Primary Connection Screw clamp terminals
Insulation Max. Temp. 180 °C
Enclosure Type Open
For Fuse Class CC
Frequency 50/60 Hz
Enclosure Style Open
Input Voltage 220V AC, 230V AC, 240V AC, 440V AC, 460V AC, 480V AC
Country of Origin Korea, Republic of
