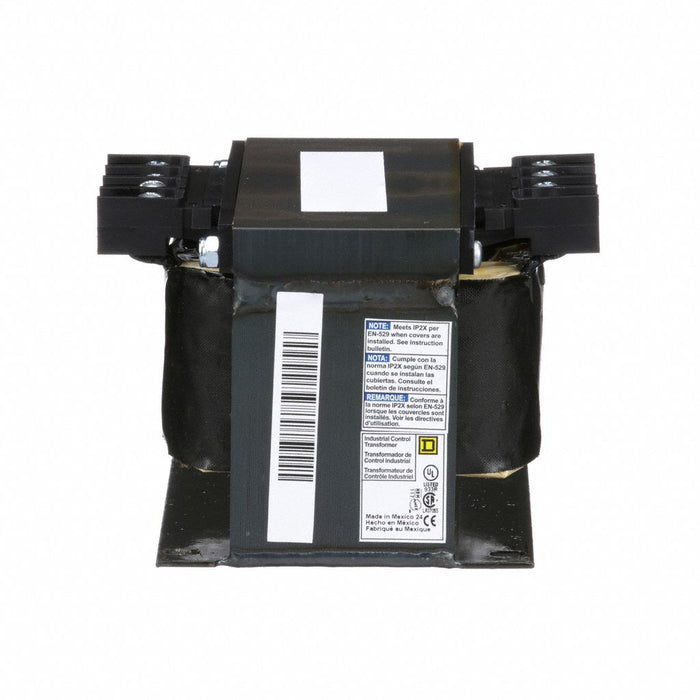

Square D 9070T500D14 Control Transformer, 208V AC, 24V AC, Foot, 500 VA, Single Phase

Square D 9070T500D14 Control Transformer, 208V AC, 24V AC, Foot, 500 VA, Single Phase

UPC: 785901339625 | Harmonization / Schedule B : 8504.31.4065

Country of Origin: Korea, Republic of | Shipping Weight: 10.85 lbs

$946.91 - $946.91
$946.91
$946.91 - $946.91
$946.91

Control Transformer, Input Voltage - Transformer 208V AC, Output Voltage - Transformer 24V AC, VA Rating - Transformer 500 VA, Protective Device None, Enclosure Style - Transformer Open, Mounting - Transformer Foot, Phase - Electrical 1, Hz - Electrical 50 Hz, 60 Hz, Temp. Rise 115 Degrees C, Enclosure Finish Epoxy Resin Varnish

Input Voltage - Transformer 208V AC
Output Voltage 24V AC
Power Rating 500 VA
Phase Single
Mounting - Transformer Foot
Hz - Electrical 50/60 Hz
NEMA Enclosure Rating Not Rated
Temperature Rise 115 Degrees C
Enclosure Finish Epoxy Resin Varnish
Enclosure Style - Transformer Open
Fused No
Standards CSA File LR37055 Guide 184-N-90, REACH, RoHS, UL Listed File E61239
Protective Device None
Green Environmental Attribute Mercury Free; Pvc Free
Insulation Max. Temp. 180 °C
Primary Connection Screw clamp terminals
Winding Material - Transformer Copper
Enclosure Type Open
Secondary Connection Screw clamp terminals
Country of Origin Korea, Republic of
