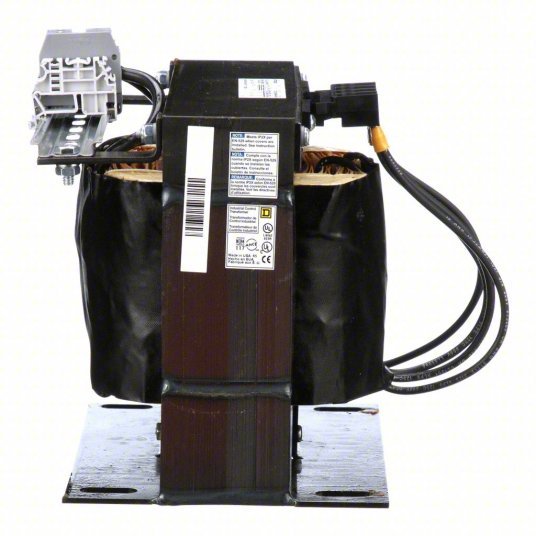

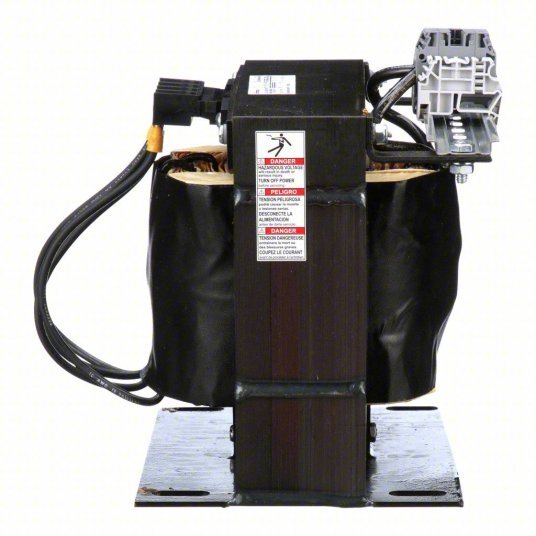

Square D 9070T3000D1 Control Transformer 240V AC/480V AC, 120V AC, Foot, 3 kVA VA Rating

UPC: 785901876083 | Harmonization (Schedule B): 8504.32.0000

Original price $2,227.56 - Original price $2,227.56
Original price
$2,227.56 - $2,227.56
Current price $2,227.56
Control Transformer, Input Voltage - Transformer 240V AC, 480V AC, Output Voltage - Transformer 120V AC, VA Rating - Transformer 3 kVA, Protective Device None, Enclosure Style - Transformer Open, Mounting - Transformer Foot, Phase - Electrical 1, Hz - Electrical 50 Hz, 60 Hz, Temp. Rise 115 Degrees C, Enclosure Finish Varnish Vacuum Impregnation
Input Voltage - Transformer 240/480V AC
Output Voltage - Transformer 120V AC
VA Rating - Transformer 3 kVA
Phase - Electrical 1
Mounting - Transformer Foot
Hz - Electrical 50 Hz, 60 Hz
Enclosure Rating Not Rated
Temp. Rise 115 °C
Standards UL and CSA Component Recognized
Enclosure Finish Varnish Vacuum Impregnation
Protective Device None
Enclosure Style - Transformer Open
Includes Pre-Wired 24 in Primary and Secondary Leads
Fused No
Green Environmental Attribute Mercury Free; Pvc Free
Insulation Max. Temp. 180°C
Primary Connection Screw clamp terminals
Enclosure Type Open
Winding Material - Transformer Copper
Secondary Connection Screw clamp terminals
