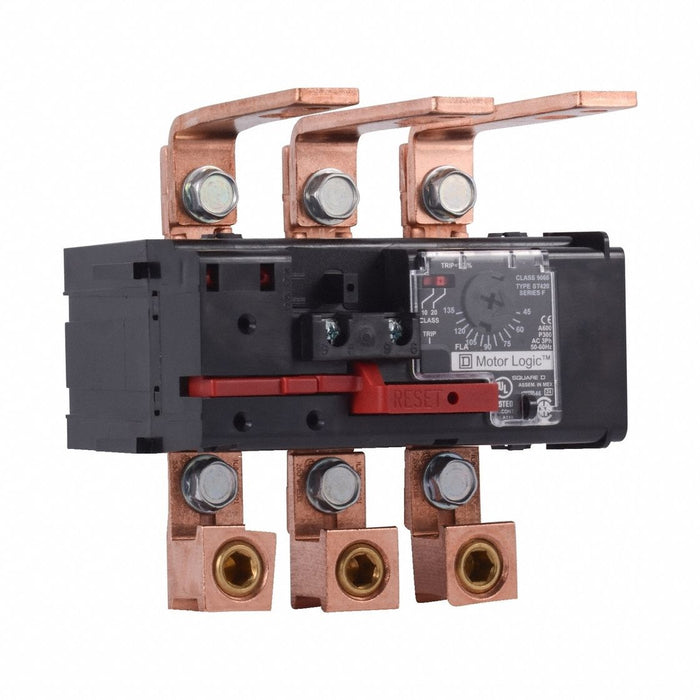

Square D 9065ST420 NEMA Overload Relay, Electronic Protection, 3 Poles, NEMA Size 4, 45 A - 135 A, 600V AC, Trip Class 10/20, Manual Reset

Name: Square D 9065ST420 NEMA Overload Relay, Electronic Protection, 3 Poles, NEMA Size 4, 45 A - 135 A, 600V AC, Trip Class 10/20, Manual Reset
Brand: Square D
Price: 668.96 USD
Availability: InStock

UPC: 785901751977 | Harmonization / Schedule B : 8536.30.8000

Country of Origin: Mexico | Shipping Weight: 3.3 lbs

$668.96 - $668.96

$668.96

$668.96 - $668.96

$668.96

NEMA electronic overload relay triggers contactors to break electrical connections with downstream equipment when current reaches a pre-determined range of full-load amperage. Adjustable current settings; semiconductor-based monitoring; faster, more accurate, and longer-lasting than thermal overload relays.

Mfr Model	9065ST420
Compatible Contactor Series	9065 Motor Logic Solid State Overload Relays
Relay Style	NEMA
Overload Protection Type	Electronic
Number of Poles	3
Phase	Three
Auxiliary Contact Form	1NC
Relay Mounting Style	Direct To Contactor
NEMA Size	4
Min Current Setting	45 A
Max Current Setting	135 A
Trip Class	10/20
Max Voltage Rating	600 V AC
Reset Type	Manual
Standards	REACH, RoHS
Country of Origin	Mexico
