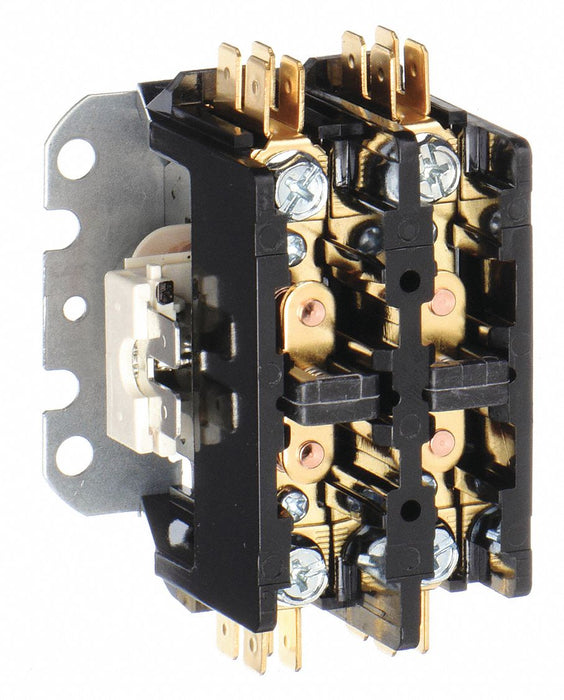

Square D 8910DP42V14 Definite Purpose Magnetic Contactor, 2 Pole, 24V AC, 1 Phase, 40 A, Box Lug & Quick Connect

The SQUARE D - 8910DP42V14 is a Definite Purpose Magnetic Contactor, an industrial electrical device designed to control the flow of power in heavy-duty applications. It operates by responding to electrical impulses, allowing or interrupting power supply based on the need. This tool is commonly used by industry professionals for managing and automating machinery operations in various sectors like HVAC, data processing, and manufacturing. Action: Non-Reversing – The contactor functions with a constant current flow direction. Coil Voltage: Rated for operation at a coil voltage of 24V AC. Control Circuit Voltage: Requires a specific voltage of 24 V AC at frequency range of 50/60 Hz for operation. Electrical Connection: Connects to an electrical circuit via quick connect terminals or box lugs. Enclosure Type: Open – The contactor does not have any additional protective casing against environmental factors such as dust and moisture. Frequency: Rated for operation within the frequency range of 50/60 Hz. Full Load Amps-Inductive & Resistive: Specified for currents up to 40 A (inductive loads) and up to 50 A (resistive loads). Pole Contact Composition: 2 Normally Open contacts. Product Certifications: Certified by UL and CSA. Rated Operational Voltage: Up to 600 V AC maximum.
